3D Robot Fiber Laser Welding Machine
The BDE13032 CNC press brake delivers robust, high-precision sheet bending with up to 140 tons bending force, 126-inch bend length, and 4-axis CNC control — ideal for consistent, heavy-duty metal forming and longer sheet applications.
Comes With?
⇲ Laser Power: 1.5kW to 20kW
⇲ Laser Wavelength: 1080 (±10) nm
⇲ Max Load of Robot: 25kg
Product Certification
FDA Certification
SUPERIOR PRODUCTS
1-YEAR WARRANTY
30 DAY MONEY BACK
GUARANTEE
LIVE USA
24/7/365 TECHNICAL SUPPORT

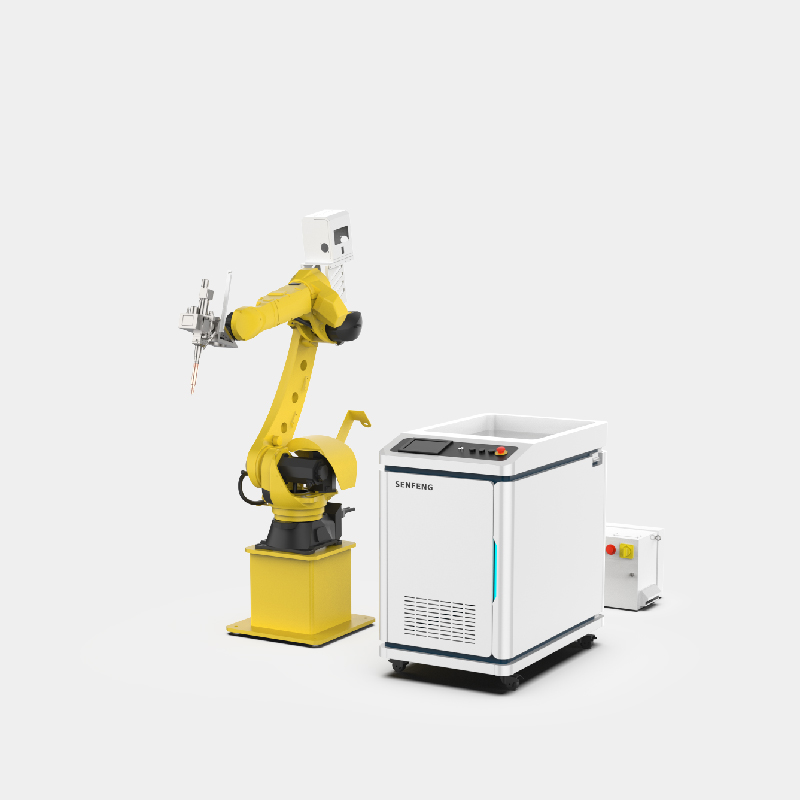

Introduction
The arm length of 3D robot fiber laser welding machine can reach to 5.9’*10.4′. It is the preferred model in the metal material welding and processing industry. The machine can weld all kinds of metal. Off-line programming software and weld seam tracking system can be selected according to customer requirements, greatly improving work efficiency.
Technical Parameters
| Model | SF1500RW | SF2000RW | SF3000RW | SF6000RW | SF12000RW | SF20000RW |
| Laser Power (kW) | 1.5 | 2 | 3 | 6 | 12 | 20 |
| Laser Wavelength (nm) | 1080 (±10) | 1080 (±10) | 1080 (±10) | 1080 (±10) | 1080 (±10) | 1080 (±10) |
| Thickness of Welding Sheet (mm) | ≤3 | ≤4 | ≤6 | ≤7 | ≤10 | ≤14 |
| Diameter of Filler Wire (mm) | 0.8-1.6 | 0.8-1.6 | 0.8-1.6 | 0.8-1.6 | 0.8-1.6 | 0.8-1.6 |
| Weight of Welding Gun (kg) | ≤2.2 | ≤2.2 | ≤2.2 | ≤8 | ≤8 | ≤8 |
| Max Load of Robot (kg) | 25 | 25 | 25 | 25 | 25 | 25 |
| Fiber Length | 32.81′ | 32.81′ | 65.62′ | 65.62′ | 65.62′ | 65.62′ |
| Robot Armspan | 72.09″ | 72.09″ | 72.09″ | 72.09″ | 72.09″ | 72.09″ |
| Overall Dimensions (L*W*H) | 19″ * 18.82″ * 5.04″ | 19″ * 21.65″ * 5.04″ | 19.02″ * 33.46″ * 6.77″ | 25.2″ * 39.37″ * 27.56″ | 480*950*780 | 750*1100*1070 |
Product Features
FANUC ROBOT M‐20iB is a cable-built multifunctional 6-axis robot with the highest performance in its series. The high strength arm and the first end servo technology can effectively improve the speed and acceleration performance. It will reduce more than 15% operation time, achieving the highest production capacity in the industry.
1) High welding precision and quality ;
2) The production efficiency is high, the working environment is improved, and the product cycle is controllable;
3) The utility model has the advantages of low energy consumption, low cost and simple and convenient maintenance.

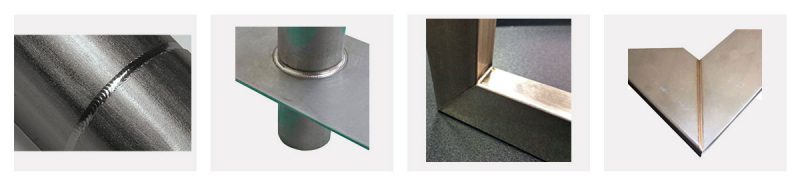

Application
3D robot welding machine is used in manufacturing industry, metallurgy industry, automobile industry, electronic industry, biomedicine, household appliances manufacturing, processing tools, IT manufacturing, food machinery, diamond tools, welding, welding gear, surface treatment of metal materials, decorative advertising, laser processing services and other processing machinery manufacturing industry.
For more details, welcome to contact us! CLICK HERE!
LOCAL SERVICE
Our North American Tech/Demo Center is located in the Los Angeles Industrial Region, conveniently near the Port of LA.
1) Equipped with showroom, sales manager, engineers and machine.
2) Price, stateside Tech-Support, Components, Capabilities, and Warranty that is likewise protected under USA Trade Law, as most of our competitors do not have USA Legal or Tech presence as we do.
PRE SALE SERVICE
1) Provide corresponding guidance and equipment information according to customer’s development needs;
2) Solve problems based on the feasibility and development requirements of local market;
3) Provide large-scale optical fiber equipment exhibition hall for customers to confirm the strength of our company.
AFTER-SALE SERVICE
1) The seller provides one-time free installation and training service at buyer’s factory, as well as the airplane tickets and salary for engineers. The buyer should provide accommodation and food to engineers.
2) The seller provides technical guide’s e-mail, telephone, Wechat, Whatsapp and so on.
3) The seller shall pay for the travel expense if local service needed within warranty time.
OUR FACTORY
SENFENG LASER is a professional sheet metal fiber laser cutter manufacturer engaged in the research, development, production, sale and service of fiber laser cutting machine, fiber laser cleaning machine, laser marking machine, laser welding machine and 3D robot. Our laser cutting machine has successfully passed CE from TUV, FDA, ISO9001-2015 certification. SENFENG LASER has established 2 subsidiaries in the United States, and Germany and 4 service centers in India, Pakistan, Serbia , and Vietnam with perfect quality and service, to provide localized services and technical support for global customers.
