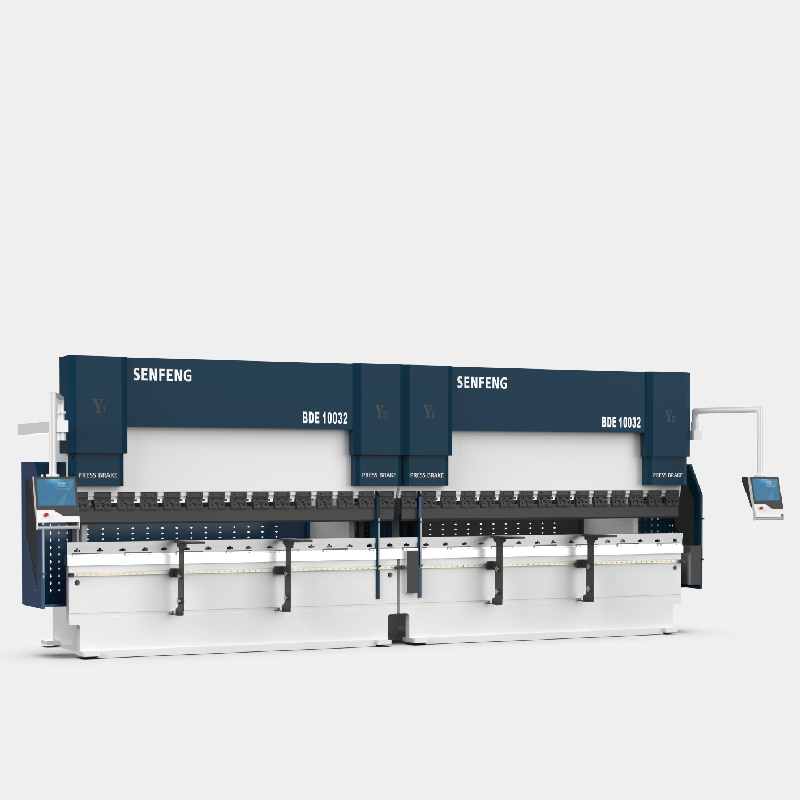

Tandem CNC Bending Machine – BDE10032
The Tandem CNC Bending Machine combines two press brakes operating in sync — doubling bending length and throughput while maintaining high precision — ideal for bending ultra-long metal sheets in a single continuous process.
Comes With?
⇲ Max Bending Force: 6000kN
⇲ Max Bending length: 236.22in
⇲ Max Depth of Throat: 23.62in
⇲ Two bending machines of the same specifications
⇲ Multi-axis backgauge and 4 backgauge fingers
⇲ Mechanical deflection compensation system
⇲ Five-axis linkage CNC system
Product Certification
FDA Certification
SUPERIOR PRODUCTS
1-YEAR WARRANTY
30 DAY MONEY BACK
GUARANTEE
LIVE USA
24/7/365 TECHNICAL SUPPORT
Product Features

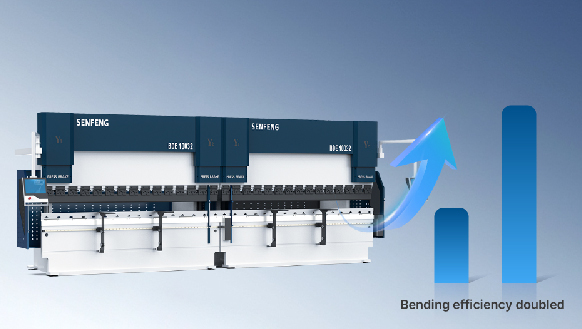

1. Take Concurrent Control of Two Machines
Due to specially designed synchronization device, two bending machines can work concurrently to address the difficulty of bending ultra-long sheets. Both synchronous operation and working alone are available to provide all users with different chooses.
- Double both bending length and efficiency
- Bending precision unchanged

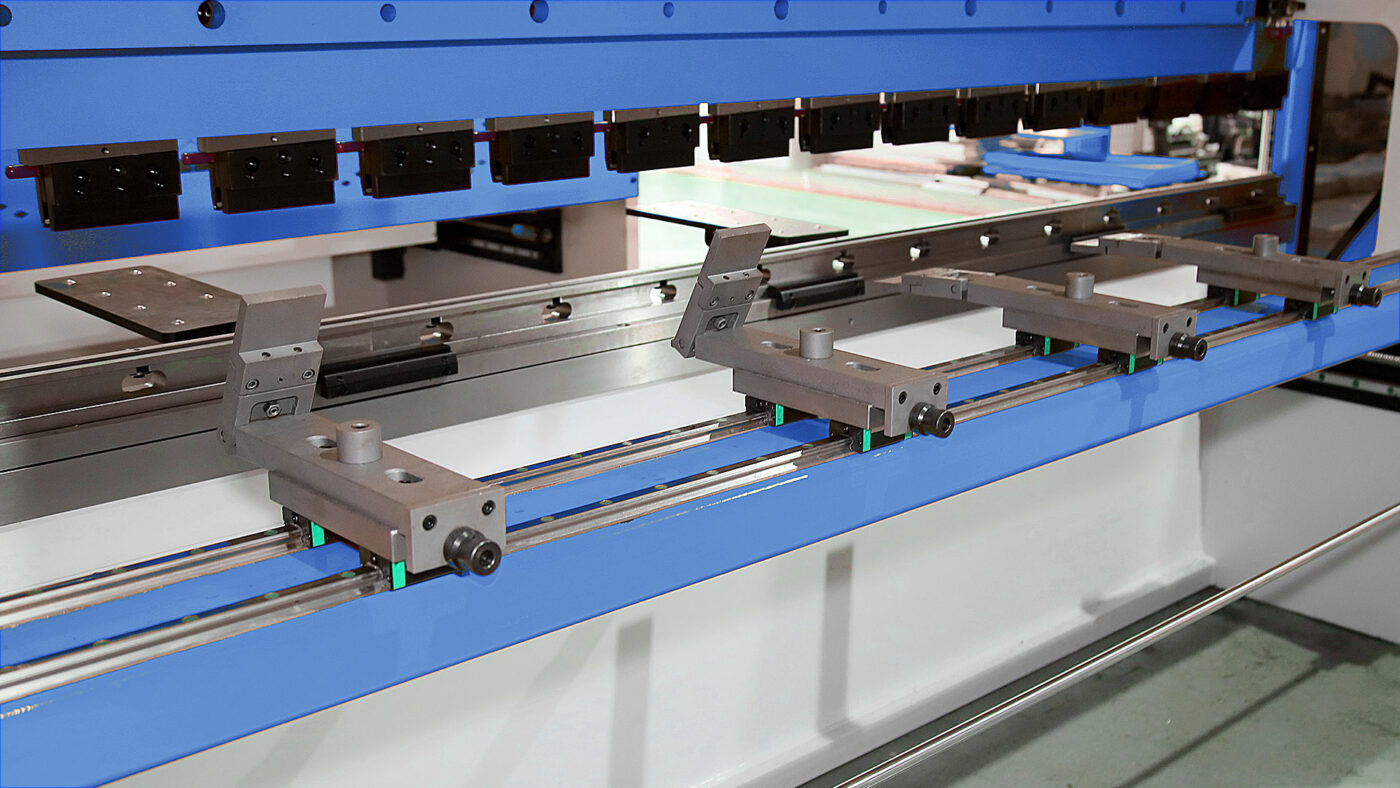

2. Sheet Positioning in Right Place
The machine has multi-axis backgauge and uses worm and worm gear to move up and down, backwards and forwards. 4 backgauge fingers are also attached in order to prevent sheets from sagging and make workpiece bending better.
- Multi-axis backgauge and 4 backgauge fingers
- X-axis speed 500mm/s, 1.5 times faster than others

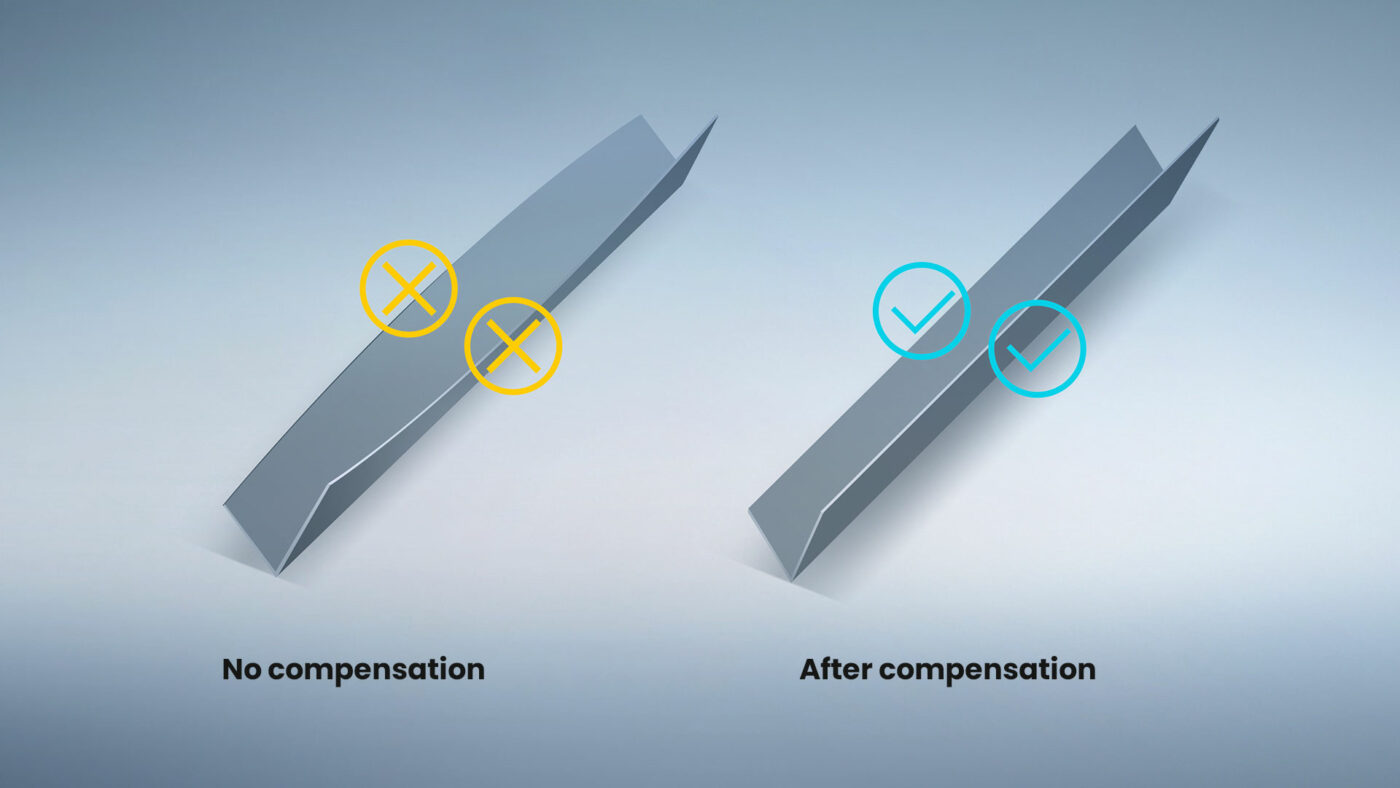

3. Mechanical Deflection Compensation
In order to make bending precision high enough, the system is used for compensating the upper and lower beam in case of flexural deflection by controlling wedge blocks based on actual compensations. With that, it is good to bridge the difference between bending sheets tellingly.
- Several sets of wedge blocks
- Lots of compensation points
- No compensation dead zone

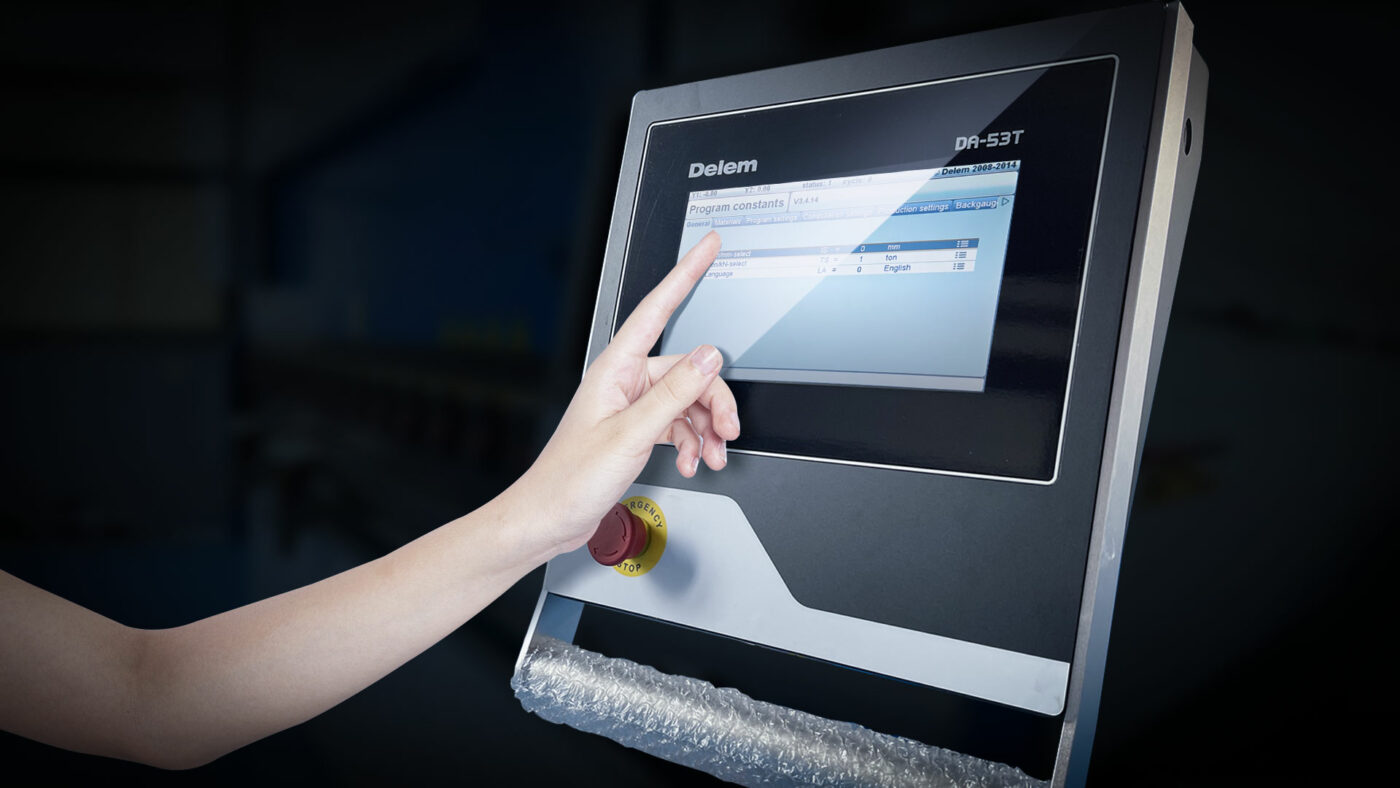

4. Touch-screen CNC System
Five-axis linkage CNC system has 10.1-inch TFT touch screen with high resolution and true color. It can take real-time control of all core components. Its user interface is simply designed and graphical programming is easy to be done.
- Hot-key touch navigation
- Special library of bending tools and materials
- Advanced Y-axis algorithm for open- and closed-loop control
- Reserve USB memory interface
Technical Parameters
| Model | BDE10032-10032 | BDE10041-10041 | BDE60060-60060 | |
| Bending Force (kN) | 1000 | 1000 | 6000 | |
| Bending Length (mm) | 3200*2 | 4100*2 | 6000*2 | |
| Depth of Throat (mm) | 400 | 400 | 600 | |
| Width Between Columns (mm) | 2600 | 3600 | 4800 | |
| Open Height (mm) | 480 | 480 | 670 | |
| Speed of Slide Blocks (mm/s) | Approach | 180 | 180 | 90 |
| Bend | 0-10 | 0-10 | 0-7 | |
| Return | 160 | 160 | 90 | |
| Overall Dimensions (L*W*H, mm) | 3700*1515*2630+3700*1515*2630 | 4700*1930*2630+4700*1930*2630 | 6200*2700*4750+6200*2700*4750 | |
| Machine Weight (kg) | 7800*2 | 9100*2 | 52000*2 | |
| Main Motor Power (kw) | 7.5 | 7.5 | 45 | |

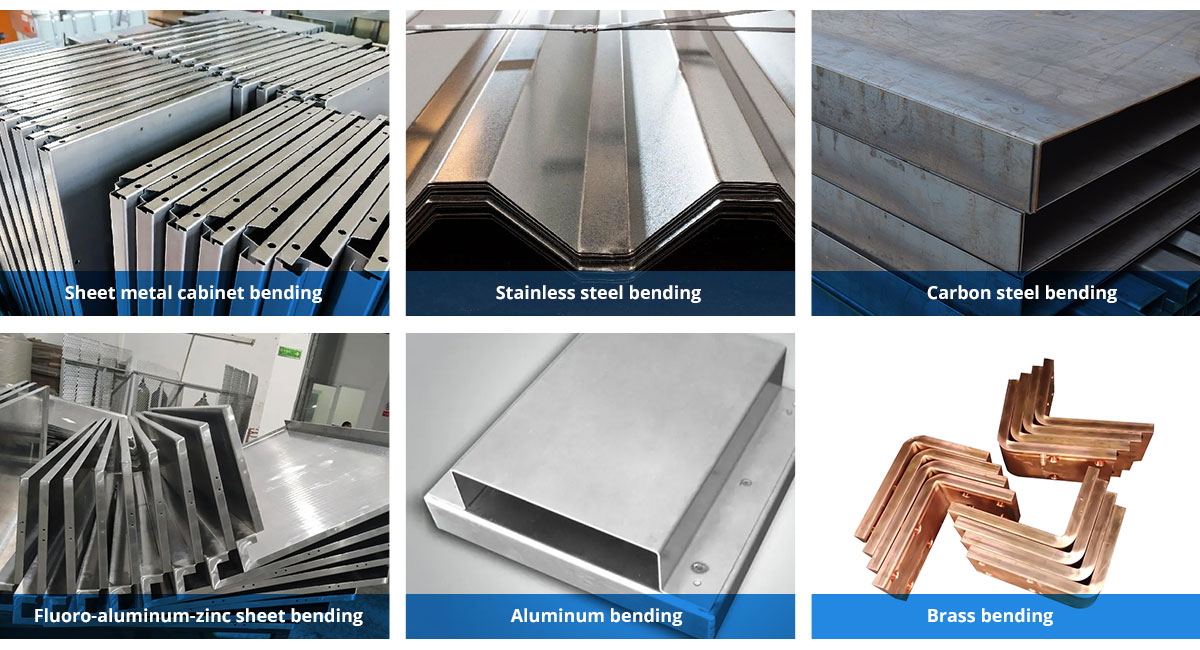

Bending Materials
