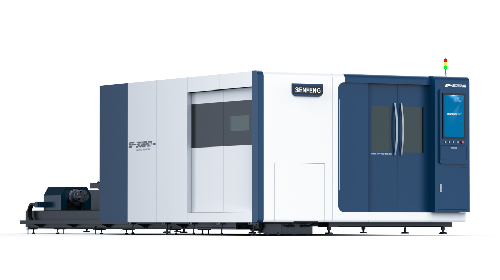

5’x10′ | Fully Enclosed Metal Tube and Plate Fiber Laser Cutting Machine SF3015HM
This machine can cut both metal sheets and metal tubes, and features a fully enclosed structure.
Comes With?
⇲ Working area ranges from 10.0×5.0ft to 20×6.7ft
⇲ Available in 208V/240V/480V/600V, 3-phase, 60Hz.
With an optional transformer, the machine can be adapted to meet various U.S. industrial power supply requirements.
⇲ Auto-focus Laser Head
⇲ Dual-exchangeable platform
Product Certification
FDA Certification
SUPERIOR PRODUCTS
2-YEAR WARRANTY
30 DAY MONEY BACK
GUARANTEE
LIVE USA
24/7/365 TECHNICAL SUPPORT
Product Features

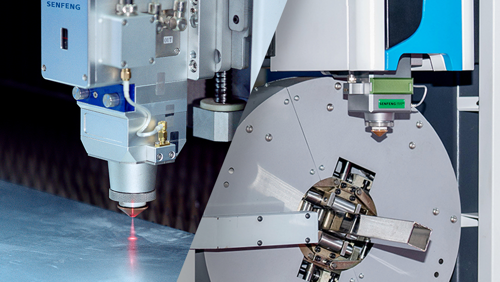

1. One Machine for Two Purposes
The equipment has the functions of cutting plates and pipes at the same time, which truly achieves a dual-purpose machine and doubles the efficiency at an affordable price.

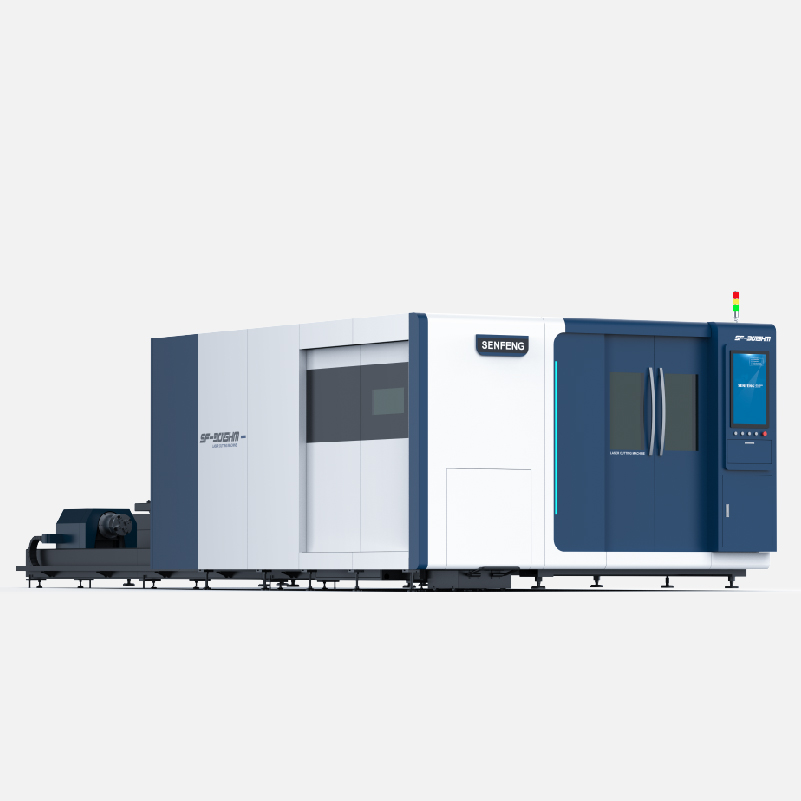

2. Fully Enclosed Structure
It is a full-cover type machine with dual table, avoiding laser radiation to ensure process safety and be compliant with local requirements.

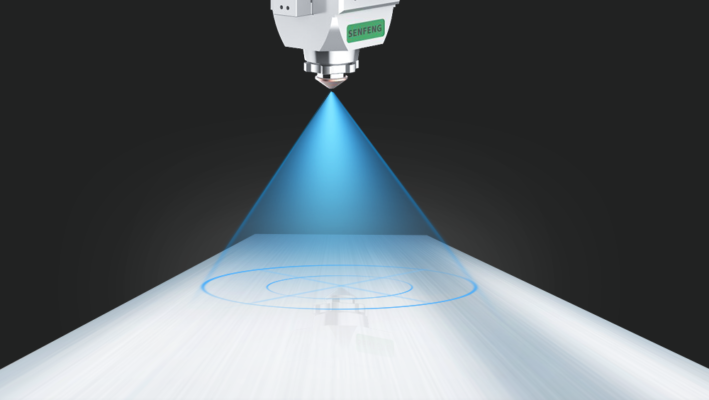

3. Auto-focus Laser Head
When processing plates of different materials and thicknesses, the equipment can automatically adjust the focus to the optimal cutting distance, achieving the effect of getting twice the result with half the effort.

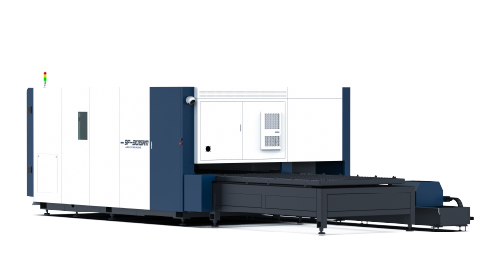

4. Dual-exchangeable platform
The design of two exchange platforms can not affect the cutting while loading and unloading, which can improve the feeding efficiency and save manpower and time costs.

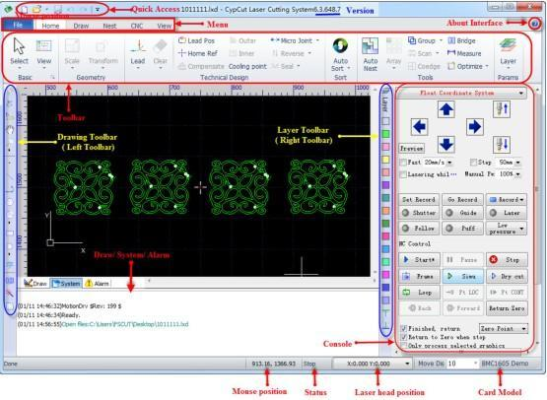

5. CNC Cutting System-FSCUT3000
SENFENG Medium Power Laser Cutting System is a fully functional open-loop control system specifically designed for the pipe processing industry. It has the characteristics of stability and reliability, convenient deployment, easy debugging, safe production, rich functions, and excellent performance; it supports and provides modular, personalized, automated, and information-based solutions to realize memory caching, and has a powerful cutting process database for different thicknesses and plates and tubes.
Technical Parameters
| Parameter | SF3015HM | SF4020HM | SF6020HM | SF6025HM |
| Laser Power (kW) | 6–30 | 6–30 | 6–30 | 6–30 |
| Working Area (L×W) | 120.0 × 60.2 in | 159.4 × 79.9 in | 238.1 × 79.9 in | 240.1 × 99.6 in |
| X/Y-axis Positioning Accuracy | ±0.00196 in | ±0.00196 in | ±0.00196 in | ±0.00196 in |
| X/Y-axis Repositioning Accuracy | ±0.00078 in | ±0.00078 in | ±0.00078 in | ±0.00078 in |
| Max. No-load Speed | 656.1 ft/min | 656.1 ft/min | 656.1 ft/min | 656.1 ft/min |
| Tube Size Range | 0.7–8.6 in | 0.7–8.6 in | 0.7–8.6 in | 0.7–8.6 in |
| Max. Tube Length | 236.2 in (19.6 ft) | 236.2 in (19.6 ft) | 236.2 in (19.6 ft) | 236.2 in (19.6 ft) |
| Max. Platform Load | 6613.8 lbs | 11023.1 lbs | 16644.7 lbs | 19841.6 lbs |
| Overall Dimensions (L×W×H) | 30.3 × 11.4 × 7.7 ft | 35.3 × 14.1 × 7.9 ft | 49.1 × 14.1 × 7.9 ft | 48.6 × 16.0 × 7.9 ft |
| Power Supply | 380V, 3-phase, 50Hz/60Hz. (Standard configuration) Available in 208V/240V/480V/600V, 3-phase, 60Hz. Single-phase power is not supported. | |||
