SF1503CLH-Aluminum Coil-fed Fiber Laser Cutter
The SF1503CLH aluminum coil fed fiber laser cutter integrates coil decoiling, leveling, feeding and laser cutting into a seamless line — specially configured for aluminum coils, it enables continuous, high precision cutting of thin coil sheet (0.023–0.118 in) with streamlined automation and excellent material utilization.
Comes With?
⇲ Working Area: 19.68 × 4.92 ft
⇲ Coiled Sheet Thickness: 0.023–0.118 in
⇲ Maximum Coil Weight: 33,069 lb
⇲ Available in 208V/240V/480V/600V, 3-phase, 60Hz.
With an optional transformer, the machine can be adapted to meet various U.S. industrial power supply requirements.
⇲ Expert in Processing Aluminum Coil
Product Certification
FDA Certification
SUPERIOR PRODUCTS
2-YEAR WARRANTY
30 DAY MONEY BACK
GUARANTEE
LIVE USA
24/7/365 TECHNICAL SUPPORT
Description

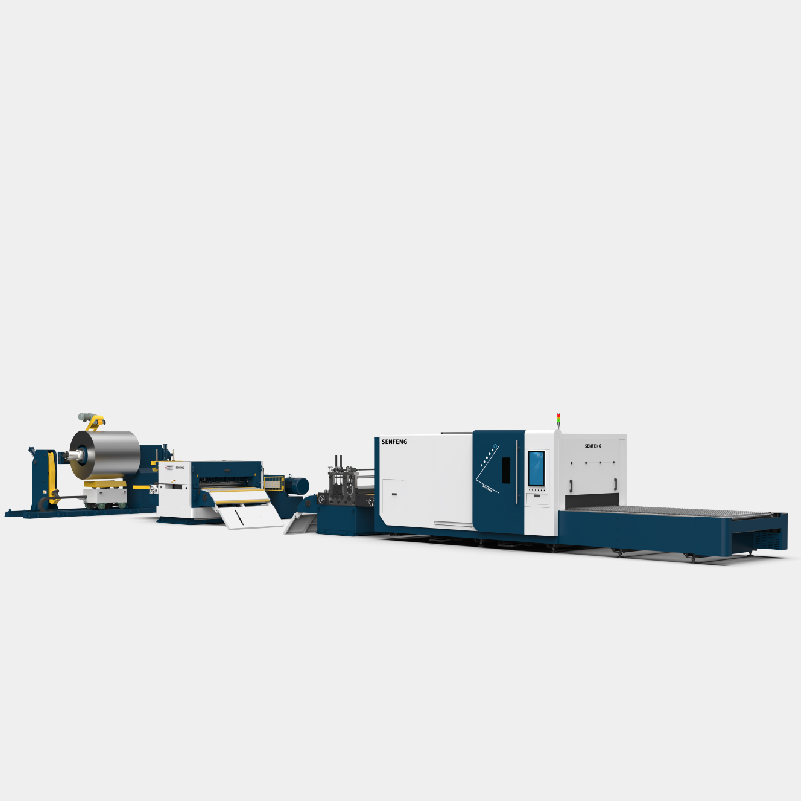

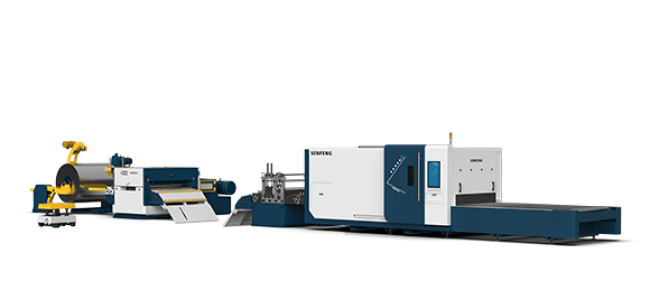

Aluminum Coil-fed fiber laser cutter is designed specifically for aluminum coil processing. It is equipped with a more advanced and preciser straightener to flatten the aluminum coil to sheets, which can proceed cutting process without any treatment in between. It is combined with a decoiler, a straightener (for aluminum exclusively), a laser cutter and feeding system. Optional devises such as laminating machine, spraying machine can be offered as well.
Product Features

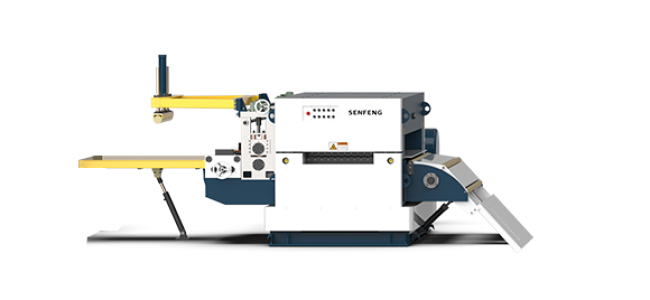

Highly-configured straightener, especially designed for aluminum coils
Well-coordinated processes: modules can be added to achieve production chain from coil to end products.
Open system can be connected to MES control to streamline the automation process.
Technical Parameters
| Main Parameters | Model | SF1503CLH |
| Decoiling and Leveling Unit | Size of Sheet Coil (in) | 118.1×59.0 |
| Thickness of Sheet Coil (in) | 0.023–0.118 | |
| Standard Inner Diameter (in) | Φ20.0 | |
| Max. Outer Diameter (in) | Φ55.1 | |
| Weight of Sheet Coil (US ton) | 11 | |
| Max. Feeding Speed (ft/min) | 32.8 | |
| Leveling Accuracy (in/ft²) | ±0.00005 | |
| Laser Cutting Machine | Laser Power (kW) | 6 |
| Position Accuracy (in) | ±0.00196 | |
| Reposition Accuracy (in) | ±0.00078 | |
| Power Supply | 380V, 3-phase, 50Hz/60Hz. (Standard configuration) Available in 208V/240V/480V/600V, 3-phase, 60Hz. Single-phase power is not supported. |
|
Application Industries
Aluminium Panel Manufacturing; Kitchen Ware Industry; Door Industry; Appliance & Cabinet Industry; Automobile components Manufacturing; Construction Machinery Industry
For more details, welcome to contact us! CLICK HERE!
Five Star Fast Service System
1. High efficiency
- 24 hours a day (mainly for international), 7 days a week, 365 days a year at any time to receive repair calls;
- Within 10 minutes, technical engineers will consult, fix maintenance plan in one hour, and send engineers in one working day.
2. Field Service
- Our branches in United States,Germany, India,Pakistan,Serbia provide localized services and technical support for global customers.
3. After-sale service
- The seller provides one time free installation and training in buyer’s factory. Seller pays for the airplane tickets and salary for engineers, buyer should provide accommodation and food to engineers.
- The seller will provide technical guide’s e-mail, telephone, WeChat, WhatsApp and so on.
- The seller should pay for the travel expense if local service needed within warranty time.
4. Warranty
- The warranty of laser source is 2 years.
- The warranty of the machine is 2 years（main spare parts）,except for the consumable parts such as ceramic ring, focus lens, nozzle etc. Warranty counts from the date marked on the label of the laser source and machine.
- Except the damage artificially, seller is responsible for offering the fittings free of charge during the warranty period.
5. Worry-free
- Pre-sale service: theoretical + practical operation training, self-diagnosis training for common faults, guidance for quick repair of difficult faults, and warning of matters needing attention in use;
- Regular service: regular maintenance reminder, regular door-to-door service, regular promotional activities;
- Value-added services: equipment software and hardware upgrading services, financial leasing services, delayed warranty service.
