The robot cladding workstation is mainly suitable for surface modification of materials, surface repair of products and prototype manufacturing. It is widely used in coal, metallurgy, offshore platform, papermaking, domestic household appliances, automobile, ship, petroleum and other industries.

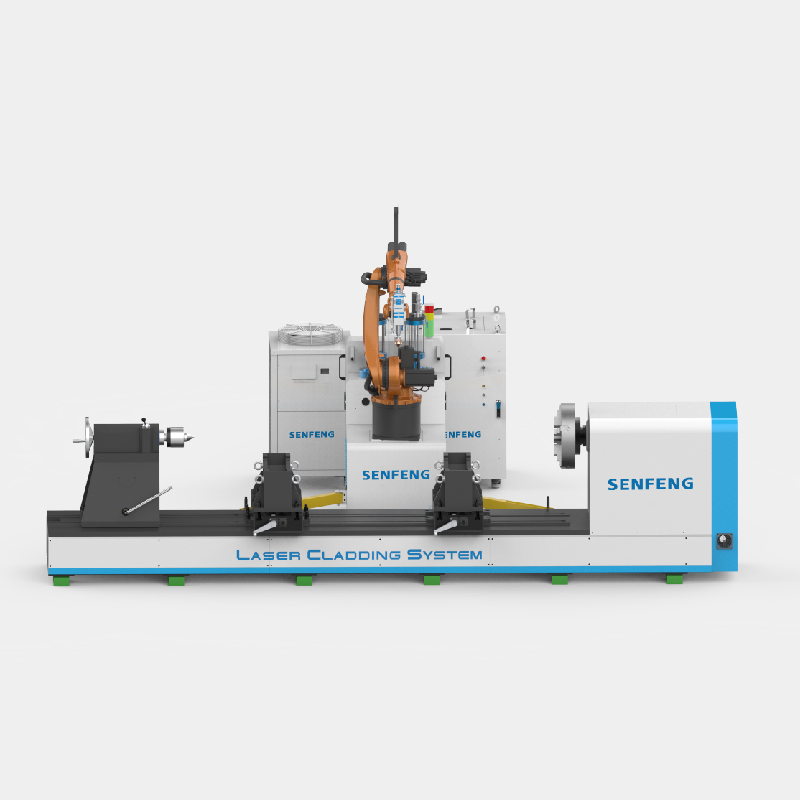

SFR6063-Robot Laser Cladding Machine
The SFR6063 robotic laser-cladding system handles heavy-duty repair and surface remanufacturing for large workpieces (table load up to 15t, workpiece length up to 6000mm), supports complex geometries (shafts, curved, spherical or special-shaped parts), and delivers metallurgically bonded, dense, wear- and corrosion-resistant coatings with high automation and minimal distortion.
Comes With?
⇲ Laser Power: 6KW/12KW
⇲ Robot: KUKA/FANUC (optional)
⇲ Max Load of Robot: 20kg (optional)
⇲ SENFENG high-speed laser cladding head
Product Certification
FDA Certification
SUPERIOR PRODUCTS
1-YEAR WARRANTY
30 DAY MONEY BACK
GUARANTEE
LIVE USA
24/7/365 TECHNICAL SUPPORT
Description

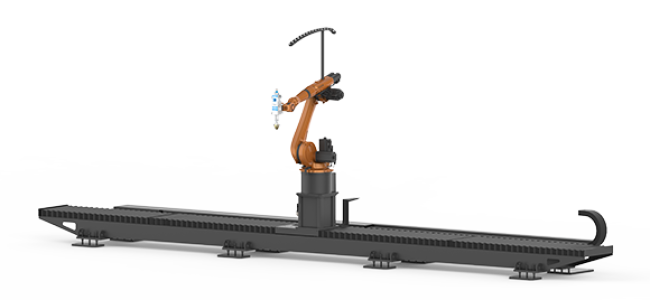

The robot cladding machine is mainly composed of six-axis industrial robot, rollover tooling, biaxial positioner, robot walking axis, workbench, laser, powder feeder, cladding and human-machine interface control system.The robot cladding machine has complete functions, diverse performances and strong versatility. It can realize the cladding of shaft surface, curved surface and special-shaped parts. It is simple to operate and easy to maintain.
Technical Parameters
| Model | SFR6063 |
| Laser Power | 6kW / 12kW |
| Power Feeder | SENFENG dual-cylinder pneumatic powder feeder |
| Laser Cladding Head | SENFENG high-speed laser cladding head |
| Robot | KUKA/FANUC (optional) |
| Max Load of Robot | 20kg (optional) |
| Max Moving Range of Robot | 1813mm (vary from different brands) |
| Max Load of Table | 15T |
| Max Length of Workpiece | 236″ |
| Max Clamping Diameter of Workpiece | Φ24.8″ |
| Max Swing of Workpiece | Φ59.1″ |
Product Features

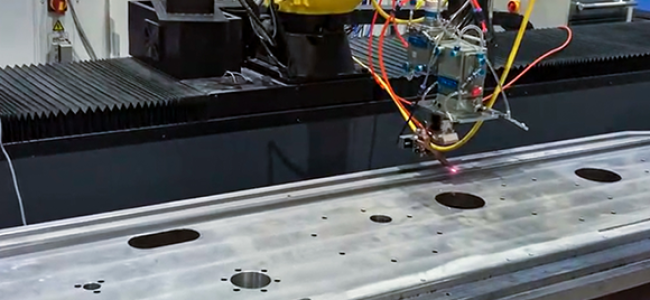

The robot cladding workstation is not only suitable for laser cladding processing of simple surfaces such as shafts and planes, but also for processing complex surfaces such as balls and curved surfaces.
The dual-axis servo positioner is independently designed by senfeng, which can realize the efficient cladding of complex curved surfaces and parts. Its variable position angle is ≤±120°.
The whole processing process adopts computer control. The function of robot is highly integrated and the application system can be switched directly.
SFR6063-Robot Laser Cladding Machine

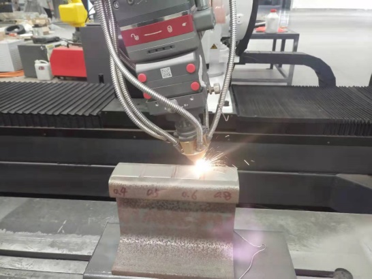

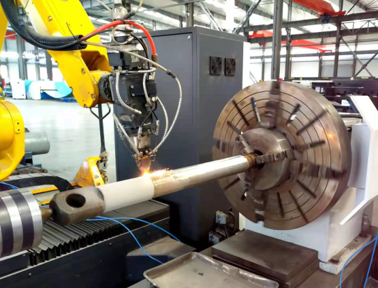

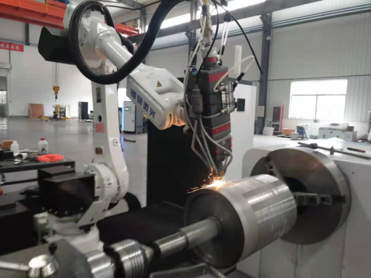

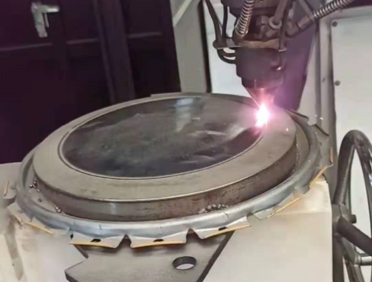

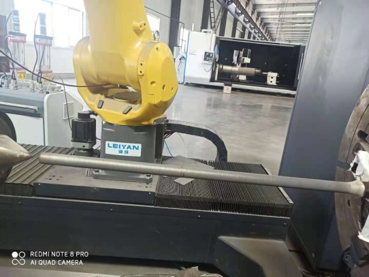

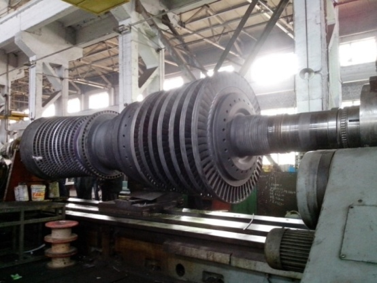

Application Industries
