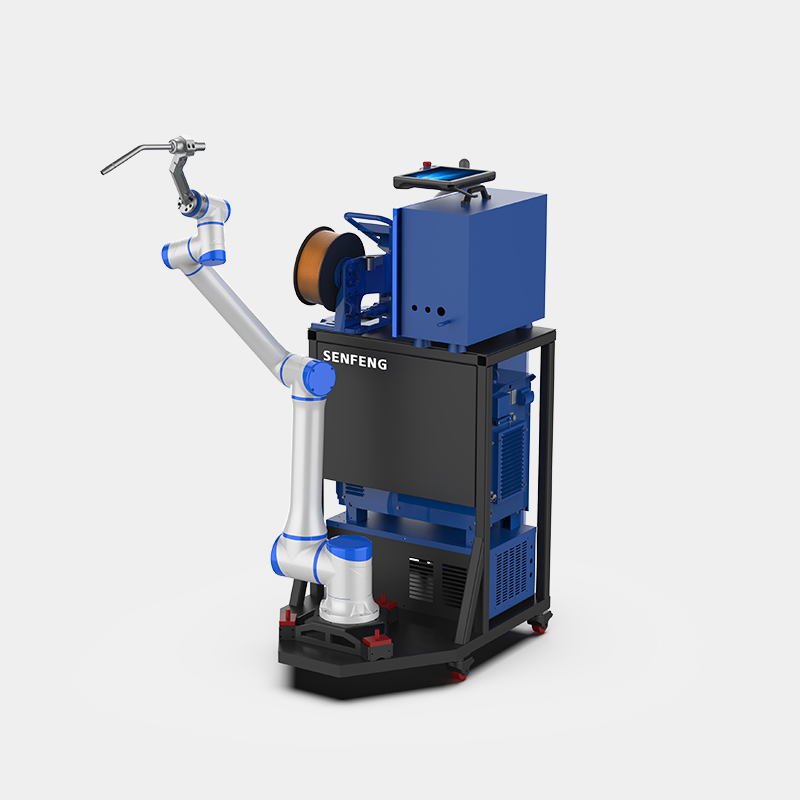

CMW Series Collaborative Robotic Arc Welding Machine
The CMW Series collaborative robot arc welder delivers precise, efficient welding with ±0.03mm repeat positioning accuracy, supports a 3–20kg payload robot, and integrates automated MIG/MAG welding for stable, high quality welds with flexible operation.
Comes With?
⇲ Robot Arm Span: 42.40in / 57.48in
⇲ Repeated Positioning Accuracy: ±0.0008in / ±0.0020in
⇲ Robot Body Weight: 46.30 lb / 48.50 lb
⇲ Collaborative arc welding robot
⇲ 3D flexible welding table
⇲ Inverter gas shielded arc welding machine
⇲ Four-wheel driven wire feeder
Product Certification
FDA Certification
SUPERIOR PRODUCTS
1-YEAR WARRANTY
30 DAY MONEY BACK
GUARANTEE
LIVE USA
24/7/365 TECHNICAL SUPPORT
Product Features

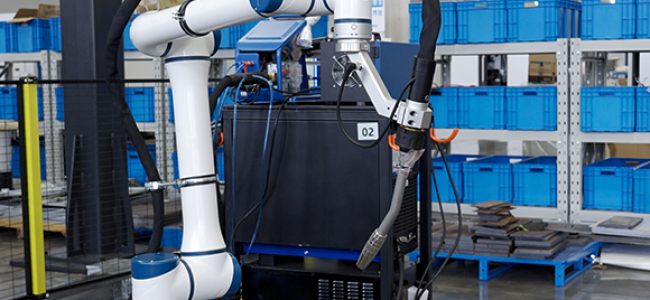

1. 3D High-precision Welding
Users can control this collaborative robot through drag-to-teach, coordinate positioning, path planning or offline programming. Its intuitive visual interface is easy to learn and operate. Due to high repeatability, it will perform precision welding for a long time.
* Robot armspan: 1077-1460mm
* Robot payload: 6-7kg
* Repeatability accuracy: ±0.02-±0.05mm

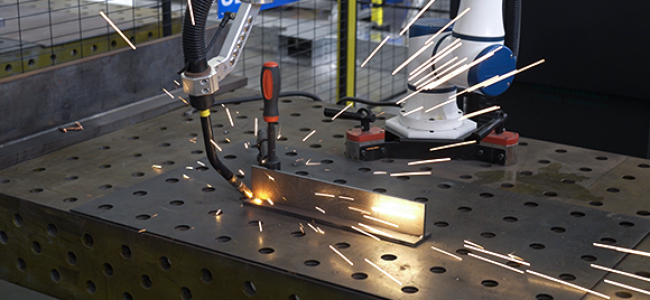

2. 3D Flexible Welding Table
The one-piece cast table has been machined on five sides with through-holes. Users may select different models based on actual needs. With pre-drilled mounting holes, it may also be installed with various clamps to secure complex workpieces.
* Multiple models available
* Fit for a wide range of complex workpieces

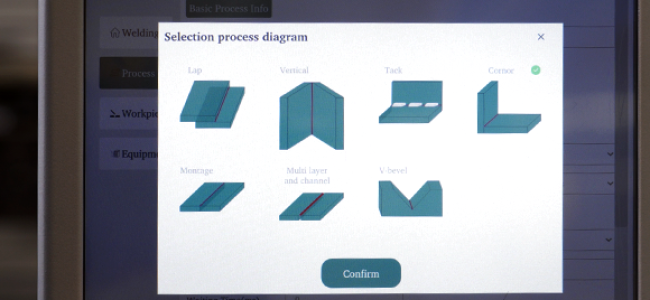

3. Advanced Welding Processes
The inverter gas shielded arc welding machine uses soft-switching inverter technology to make IGBT elements more reliable. Combined with advanced hardware and software, it offers multiple processes like low-spatter welding while welding carbon steel, stainless steel or galvanized sheets.
* Pulse welding * High-speed pulse welding * Short-arc pulse welding
* Double-pulse short-arc welding * Deep-penetration welding * Constant voltage welding

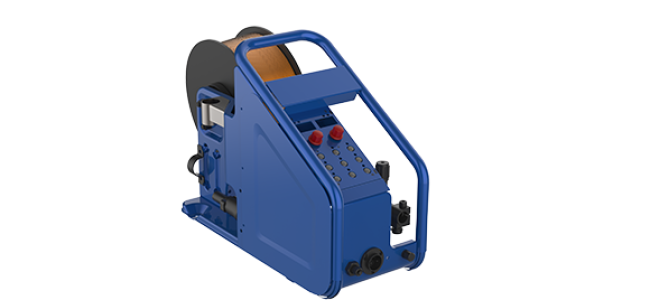

4. Four-wheel Driven Wire Feeder
The wire feeder is featured by wire feeding & retracting and gas detection button. You may also apply for gun cleaning station and special interface for wire feeding & retracting gun as optional, making your operations easier.
* Welding wire diameter: φ0.8-1.6mm
* Max wire feeding speed: 24mm/min

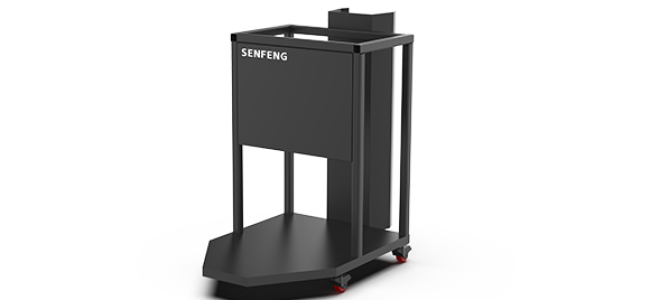

5. Optional Mobile Trolley
This all-in-one trolley integrates the arc welding machine, wire feeder, control cabinet, welding robot, water tank and gas cylinder, so it is easy to move because of braking function during on-site welding.
* Trolley size: 950*700*1000mm
* Max load: 200kg
Technical Parameters
| Model | 350CMW | 500CMW | |
| Robot Arm Span | 1350mm | ||
| Robot Load (kg) | 3-20 | ||
| Repeated Positioning Accuracy | ±0.03mm | ||
| Working Temperature | -10~40℃ | -10~40℃ | |
| Welding Machine | AOTAI | MAG-350PRO | NBC-500RP Plus |
| MAGMEET | Artsen Plus 350D | Artsen Pro 500PR | |
| Welding Materials | Carbon Steel and Stainless Steel | Carbon Steel and Stainless Steel | |
| Cooling Mode of Arc Welding Gun | Air Cooling | Water Cooling | |
| 3D Flexible Welding Platform | 1500*1500*650mm（customizable） | ||
| Power Supply | 380V±10％，50Hz±1 | ||
| Total Power | 16.5KVA | 27KVA | |
