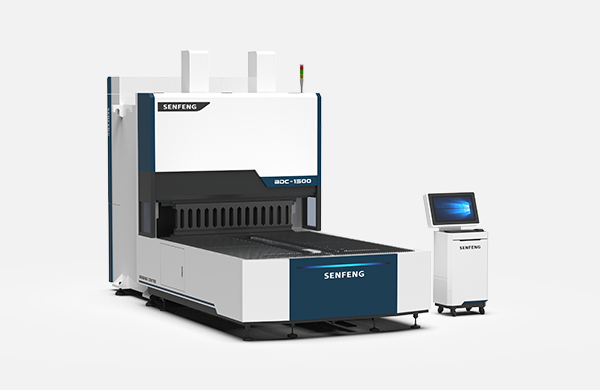

Suction-cup Automatic Panel Bender BDC-1500
The Suction Cup Automatic Panel Bender automates thin sheet metal bending with vacuum cup loading, 360° sheet rotation, and universal bending tools — delivering fast (0.2 s/bend), high accuracy, scratch free bends for high volume panel production.
Comes With?
⇲ Max Bending Speed: 0.2S/bend
⇲ Max Bending Length: 47.24-59.06in
⇲ Max Bending Height: 6.69in
⇲ Hi-end CNC operating system
⇲ Universal bending tools
⇲ Soft brushes on machine bed
⇲ Servo motor with high rotating speed and high torque
Product Certification
FDA Certification
SUPERIOR PRODUCTS
1-YEAR WARRANTY
30 DAY MONEY BACK
GUARANTEE
LIVE USA
24/7/365 TECHNICAL SUPPORT
Product Features

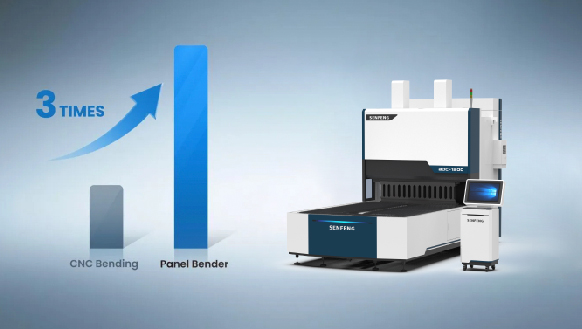

1. Faster Bending Speed than a CNC Press Brake
With bending speed of 0.5s/time, the machine works three times faster than common CNC bending machine, in favor of the decrease of production and labor costs.

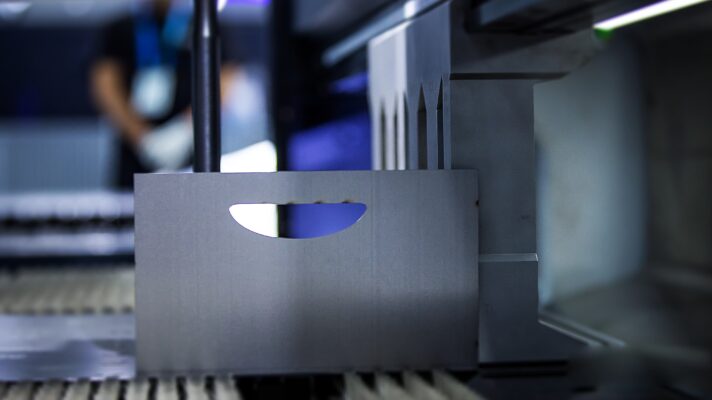

2. Universal Bending Tools
They are made of high-strength alloy/die steel and have got through dozens of procedures including solid forging, tempering and quenching. With high abrasive resistance and long lifetime, the whole machine can bend for more than one million times and need minimum tool replacement.

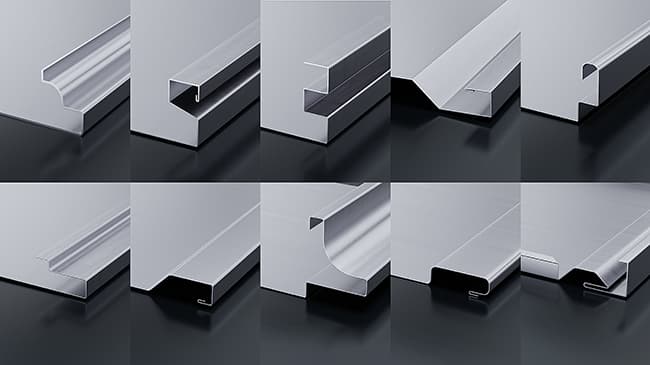

3. Bend in Various Shapes
This panel bender offers fully-automatic bending and requires no manual intervention while it bends in right, acute, obtuse angle, and in complex shapes like arc, dead edge, U-shaped and enclosed type. Besides, bending up & down and level-up bending are also feasible.

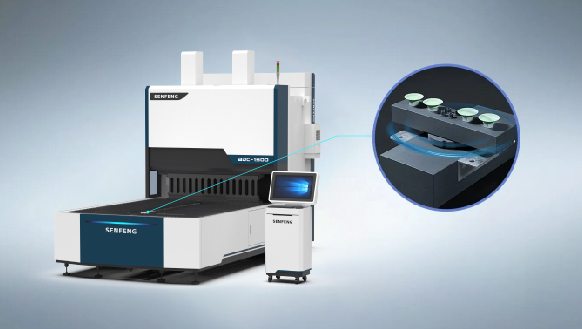

4. Suction-cup Loading System
Suck up and spin sheets within the range of 360°. Its two guiding rules enable accurate positioning and adjust bending angle automatically. Soft brushes are particularly installed on machine bed to protect sheets from possible scratch. This machine is suitable for bending light and thin sheets.

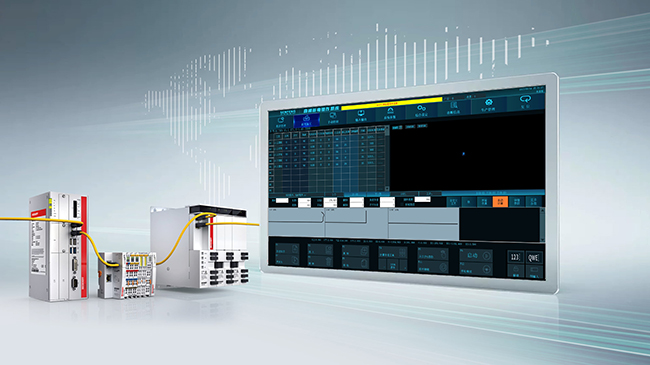

5. High-performing Control System
EtherCAT is a high-performance, real-time Ethernet-based fieldbus system that is widely used in industrial automation applications, including bending machines.
High-speed communication
Ideal for complex bending applications
Improved synchronization
Enhanced diagnostic capabilities
Technical Parameters
| Model | BDC-1200 | BDC-1500 | |
| Max Bending Speed | 0.2S/bend | 0.2S/bend | |
| Max Bending Length | 47.24″ | 59.06″ | |
| Maximum bending height | 6.69″ | ||
| Max Bending Thickness | 201 stainless steel | 0.8mm | |
| Cold plate | 1.0mm | ||
| AL sheet | 1.3mm | ||
| Min Bending Thickness | 0.35mm | ||
| Max Bending Size | 47.24″ * 47.24″ | 59.06″ * 49.21″ | |
| Number of Axes | 10-axis concurrent linkage | ||
| Rated Voltage | 380V | ||
| Total Motor Power | 30kW | 39kW | |
| Dimensions（mm）(L*W*H) | 12.1′ * 5.9′ * 9.8′ | 13.1′ * 6.5′ * 10.0′ | |
| Overall Dimensions | 12.14’*5.91’*8.04′ | 13.12’*6.56’*8.37′ | |
| Gross Mass (T) | 9 | 12 | |

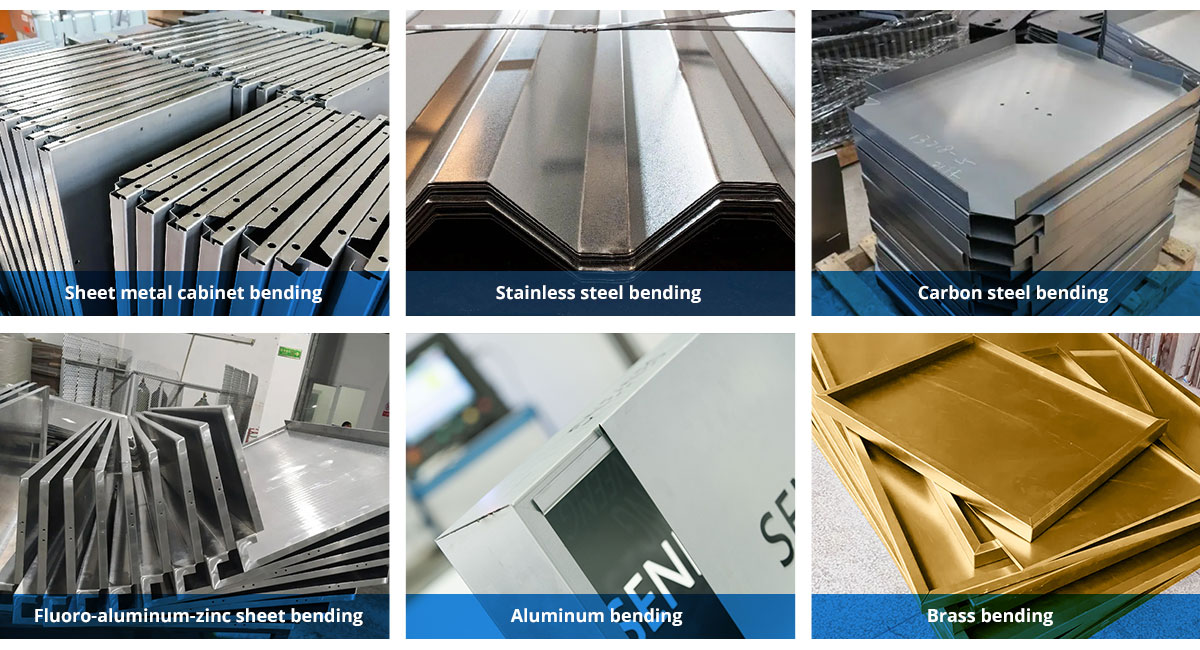

Bending Materials
