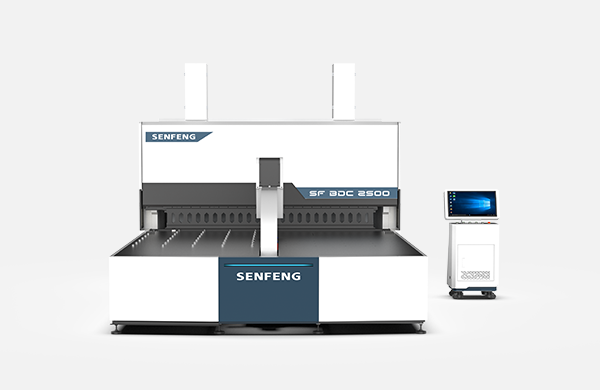

Push-down Automatic Panel Bending Machine BDC-2500
The automatic panel bender delivers fully automated sheet bending — from loading to unloading — delivering high-speed (0.2 s/bend), high-precision bending of thin sheet metal with minimal manual intervention and stable, repeatable results.
Comes With?
⇲ Max Bending Speed: 0.2S/bend
⇲ Max Bending Length: 59.06-125.98in
⇲ Max Bending Width: 49.21in
⇲ Various Machine Sizes and Features Available
⇲ Universal Bending Tool
⇲ Push-down Feeding
Product Certification
FDA Certification
SUPERIOR PRODUCTS
1-YEAR WARRANTY
30 DAY MONEY BACK
GUARANTEE
LIVE USA
24/7/365 TECHNICAL SUPPORT
Product Features

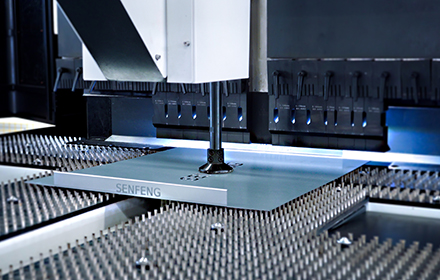

1. 3 Times Faster than a CNC Press Brake
It is designed for high-volume production running with a higher level of automation and features such as universal bending tools and automatic feeding systems, which reduces manual labor and increases efficiency.

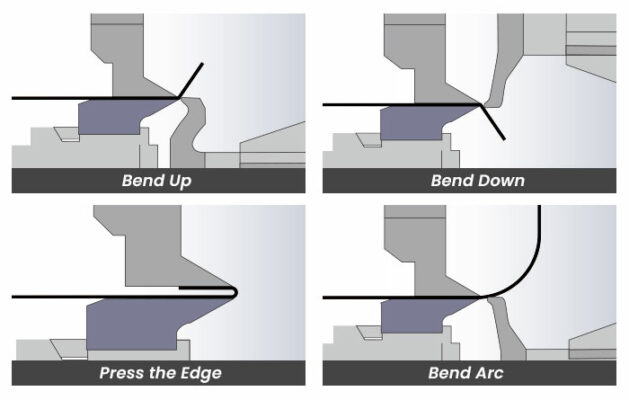

2. Various Bending Shapes
BDC Series can easily realize basic bending styles such as right angle, acute angle, obtuse angle, etc., and can also realize arc, dead edge, return type, closed type, and other complex sheet metal bending requirements.
3. Universal Bending Tools

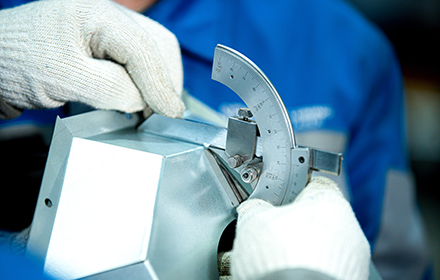

It can adapt to the bending of workpieces with different angles and radii to meet changing production needs, reduce downtime and increase productivity.

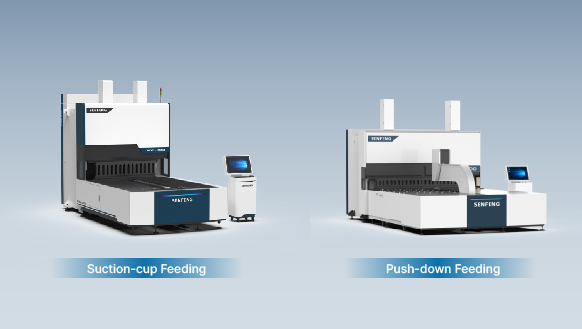

4. Suction-cup Feeding vs Push-down Feeding
The main difference is the way in which the sheet metal is held in place during the bending process.
Vacuum suction bending is best suited for thin and delicate sheet metal materials that require high precision and accuracy, while downward bending is best suited for thicker and more robust sheet metal materials that require a higher level of force and a consistent bend angle.

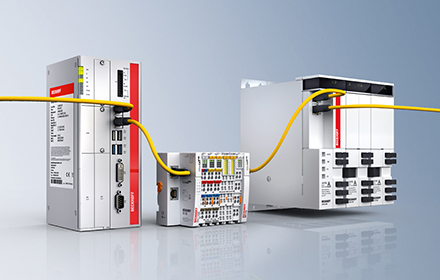

5. CNC Control System
EtherCAT is a high-performance, real-time Ethernet-based fieldbus system that is widely used in industrial automation applications, including bending machines.
High-speed communication
Ideal for complex bending applications
Improved synchronization
Enhanced diagnostic capabilities
Technical Parameters
| Model | BDC1500 | BDC2000 | BDC2500 | BDC3200 |
| Max Bending Speed (S/bend) | 0.2 | 0.2 | 0.2 | 0.2 |
| Max Bending Length | 59.06″ | 78.74″ | 98.43″ | 125.98″ |
| Max Bending Thickness (mm) | 304 stainless steel: 1.5 | 304 stainless steel: 1.5 | 304 stainless steel: 1.5 | 304 stainless steel: 1.5 |
| cold plate: 2.0 | cold plate: 2.0 | cold plate: 2.0 | cold plate: 2.0 | |
| AL sheet: 2.5 | AL sheet: 2.5 | AL sheet: 2.5 | AL sheet: 2.5 | |
| Min Bending Thickness (mm) | 0.35 | 0.35 | 0.35 | 0.35 |
| Max Bending Size (L*W) | 59.06″*49.21″ | 78.74″*49.21″ | 98.43″*49.21″ | 125.98″*49.21″ |
| Number of Axes | 13-axis concurrent linkage | 13-axis concurrent linkage | 13-axis concurrent linkage | 16-axis concurrent linkage |
| Rated Voltage (V) | 380 | 380 | 380 | 380 |
| Total Motor Power (KW) | 34.2 | 36.5 | 65 | 80 |
| Gross Mass (T) | 13 | 17 | 22 | 25 |
| Overall Dimensions (L*W*H, mm) | 173“ * 78” * 108“ | 196“ * 106” * 116″ | 224″ * 125″ * 120″ | 259″ * 157″ * 129″ |
