Robot-assisted CNC Bending Machine – BDE10032
The BDE10032 uses a built-in industrial robot plus CNC control for automated loading/unloading and bending — delivering consistent high-precision metal bending, 24/7 operation, and reduced labor demand for high-volume production.
Comes With?
⇲ Maximum Bending Force: 1000kN
⇲ Working Speed: 0-10m/s
⇲ Return Speed: 160mm/s
⇲ Five-axis linkage CNC system
⇲ Main machine body with high strength
⇲ Well-behaved servo motor
⇲ Grating ruler for bending precision
⇲ 1 set of standard upper & lower bending tools
Product Certification
FDA Certification
SUPERIOR PRODUCTS
1-YEAR WARRANTY
30 DAY MONEY BACK
GUARANTEE
LIVE USA
24/7/365 TECHNICAL SUPPORT
Product Features
1. Good to Excellent
The machine can work in automatic and mechanized manner in whole process, with no or little manual intervention. For medium-thick sheets, traceless bending is easy to achieve. In addition to high consistency among workpieces, it also features fast speed and high efficiency.

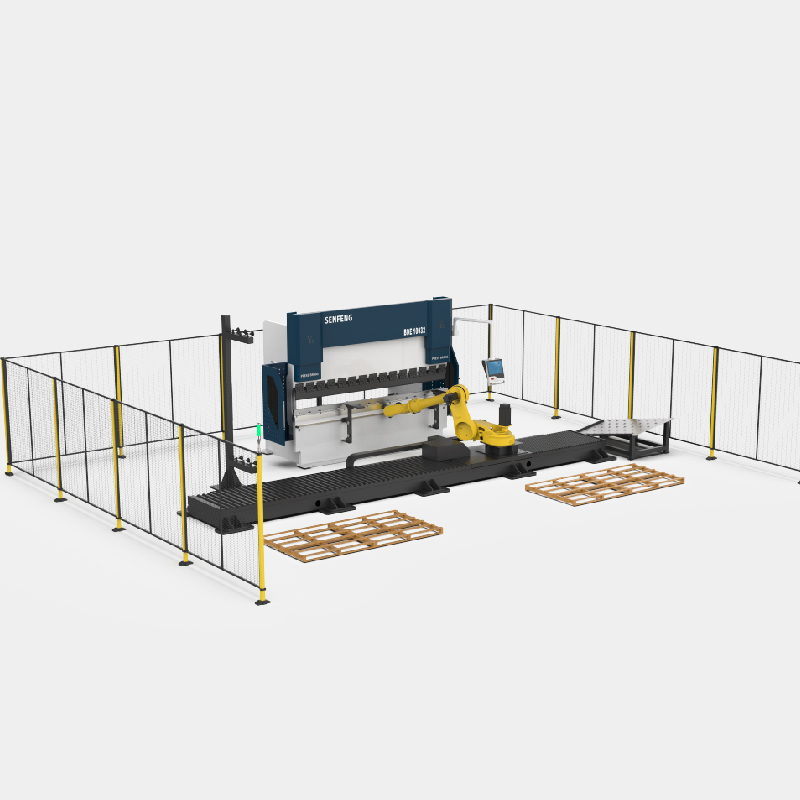

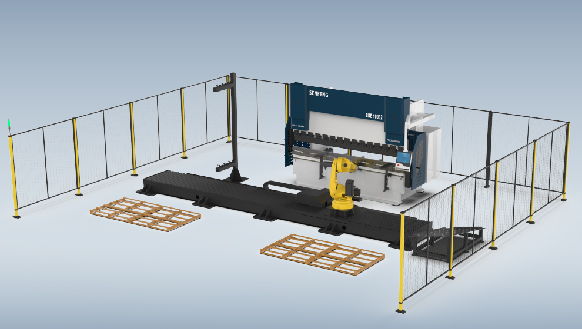

To avoid personnel casualties and needless downtime arising from bursting in workspace, we also provide safety fence to make your bending both safe and ceaseless.

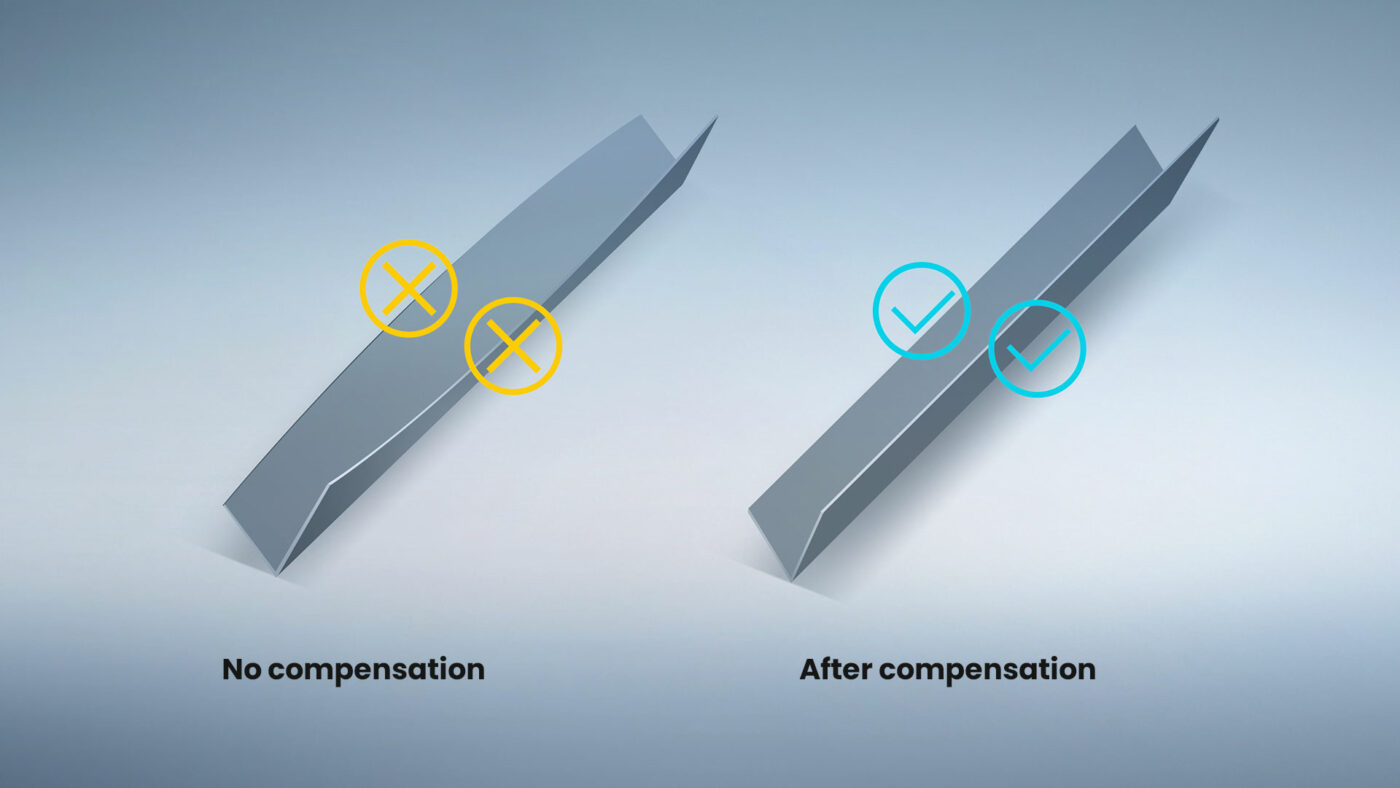

2. Mechanical Deflection Compensation System
In order to make bending precision high enough, the system is used for compensating the upper and lower beam in case of flexural deflection by controlling wedge blocks based on actual compensations. With that, it is good to bridge the difference between bending sheets tellingly.
- Several sets of wedge blocks
- Lots of compensation points
- No compensation dead zone

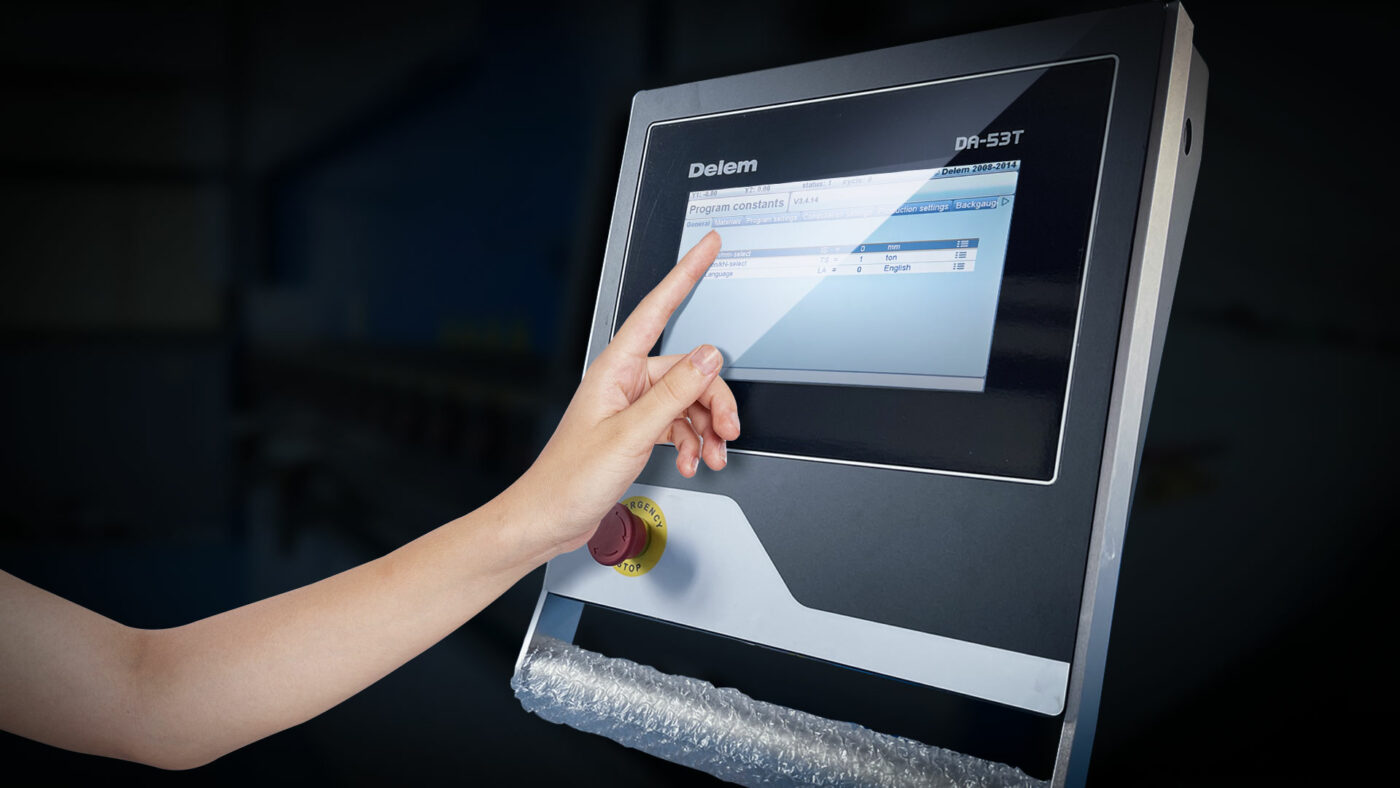

3. Five-axis Linkage CNC system
As one of mainstream bending systems across the globe, it is intended for bending and superior in performance after its long development history, such as automatic calculation of bending parameters and detection of collision.
- 2D graphic programming
- 10.1-inch TFT touch screen with high resolution and true color

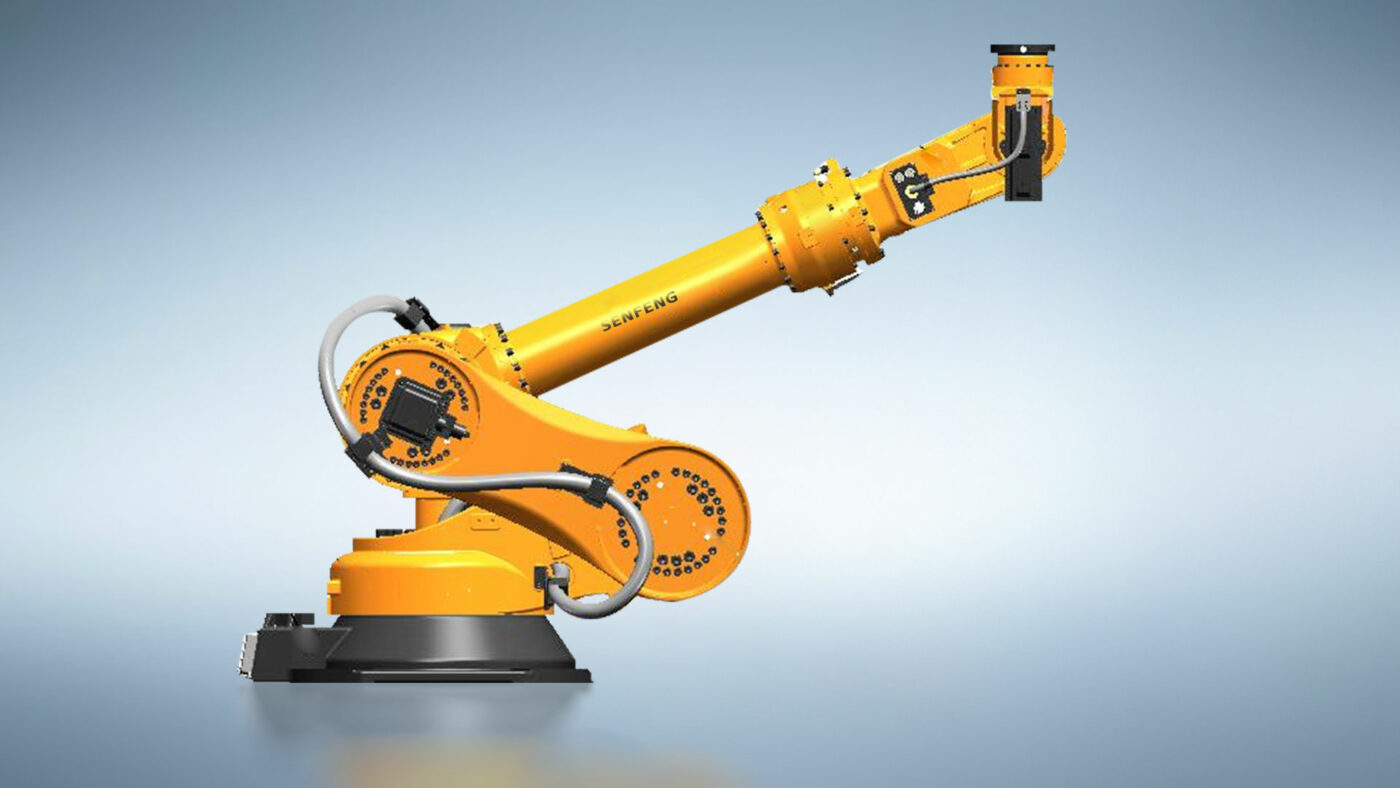

4. Industrial Robot
It bends, loads & unloads sheet, corrects the bending sheet position and turns it over. The built-in following motion model and track algorithm are a helper to make sure of good following effects and enable rapid and cooperative control with the bending machine.
- Max working radius: 2565mm
- Max load: 80kg
- Degree of freedom (DOF): 6
Technical Parameters
| Model | BDE10032 |
| Maximum bending force | 1000KN |
| Side rack spacing（B） | 102.36″ |
| Throat depth（E） | 15.74″ |
| Bending length（A） | 125.98″ |
| Maximum cylinder stroke | 7.87″ |
| Main motor power | 7.5kW |
| Weight | 6600kg |
| Distance between table and beam（D） | 18.89″ |
| Get down speed | 180mm/s |
| Working speed | 0-10m/s |
| Return speed | 160mm/s |
| Carbon Steel Bending thickness | ≤ 3 mm |
| Stainless Steel Bending thickness | ≤ 2 mm |
| Aluminum Bending thickness | ≤ 4.5 mm |
| Dimensions（L*W*H） | 12.13′ * 5.23′ * 8.69′ |
Bending Materials
