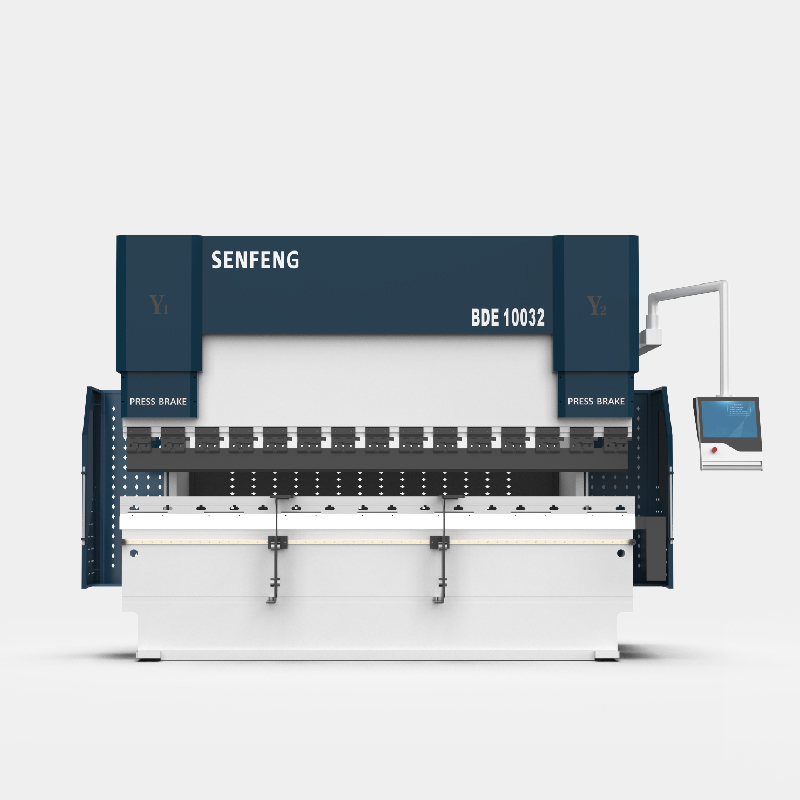

CNC Bending Machine – BDE10032
The BDE10032 CNC press brake delivers robust, high-precision sheet bending with up to 140 tons bending force, 126-inch bend length, and 4-axis CNC control — ideal for consistent, heavy-duty metal forming and longer sheet applications.
Comes With?
⇲ Max Bending Force: 6000kN
⇲ Max Bending length: 236.22in
⇲ Max Depth of Throat: 23.62in
⇲ Various Machine Sizes and Features Available
⇲ 4+V Axis as Standard (6+V/8+V Axis Optional)
⇲ DELEM CNC System as Standard (CYBELEC/ESA-S860 Optional)
⇲ 4 Back Gauge Fingers
⇲ Hydraulic System
Product Certification
FDA Certification
SUPERIOR PRODUCTS
1-YEAR WARRANTY
30 DAY MONEY BACK
GUARANTEE
LIVE USA
24/7/365 TECHNICAL SUPPORT
Product Features
1. Unique and innovative design

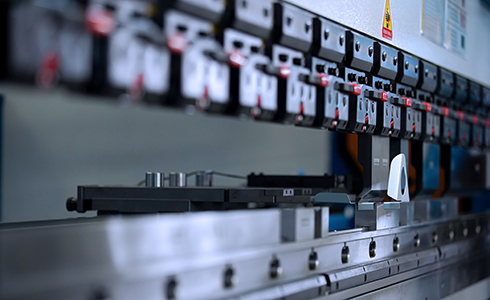

Column spacing (B-axis) After countless experiments and deduction, SENFENG team designed the most suitable column spacing for different models to achieve high-strength and high-precision bending.
2. Super bending consistency and precision

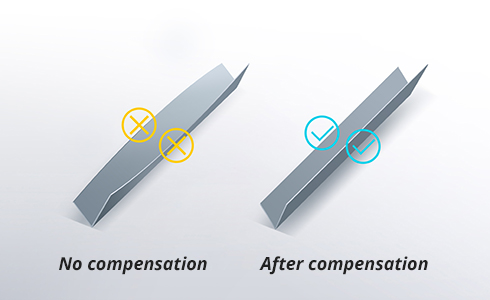

Mechanical crowning (V–axis) is added to SENFENG machines to compensate for any deflection or deformation, ensuring that the workpiece is bent accurately and consistently across its entire length.
3. High-level productivity

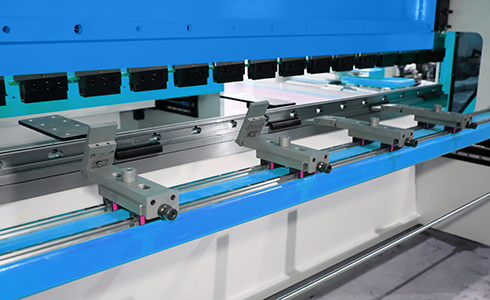

4 Back gauge fingers The fastest speed of the X-axis is as high as 500mm/s, which is 1.5 times the speed of the same industry.
4. German REXROTH hydraulic system

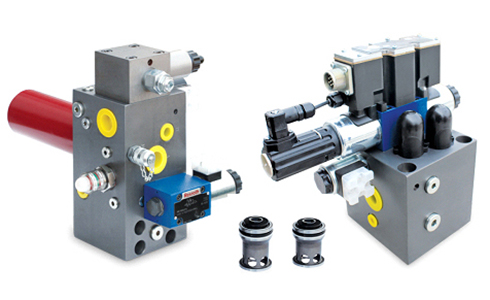

German REXROTH hydraulic system is known for its durability and reliability, which is designed to withstand harsh conditions and heavy use, ensuring long-lasting performance and productivity.
5. DSP laser safety protection device（Optional）

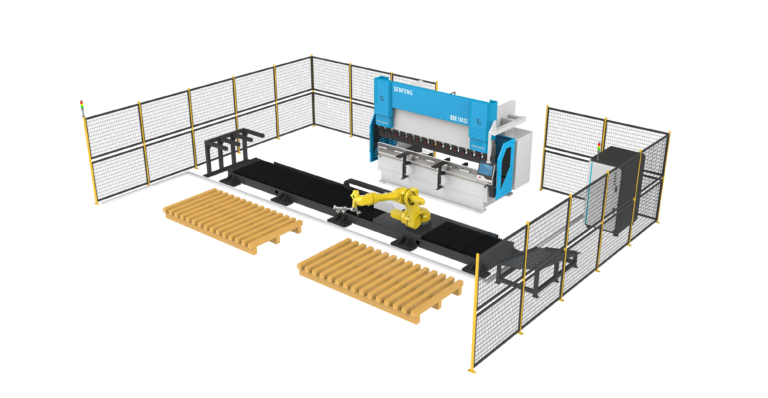

Robotic feeding cell can also be used for automatic feeding of sheet metal, which improves productivity and reduces downtime, and realizes high-precision bending with automation and flexibility.
6. DSP laser safety protection device（Optional）

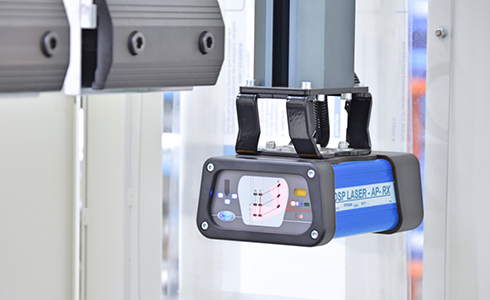

DSP laser safety protection device is an important safety feature in a CNC bending machine, helping to protect the operator and improve the overall safety and compliance of the machine.
Technical Parameters
| Model | BDE5016 | BDE10032 | BDE10042 | BDE20060 | BDE25032 | BDE60060 | |
| Bending Force (kN) | 500 | 1000 | 1000 | 2000 | 2500 | 6000 | |
| Bending Length (mm) | 1600 | 3200 | 4200 | 6000 | 3200 | 6000 | |
| Depth of Throat (mm) | 205 | 400 | 400 | 400 | 400 | 600 | |
| Width Between Columns (mm) | 1200 | 2600 | 3600 | 5000 | 2600 | 4800 | |
| Open Height (mm) | 460 | 480 | 480 | 480 | 500 | 670 | |
| Speed of Slide Blocks (mm/s) | Approach | 180 | 180 | 180 | 140 | 130 | 90 |
| Bend | 0-10 | 0-10 | 0-10 | 0-8 | 0-8 | 0-7 | |
| Return | 160 | 160 | 160 | 110 | 120 | 90 | |
| Overall Dimensions (L*W*H, mm) | 2100*1770*2395 | 3700*1930*2630 | 4700*1930*2630 | 6500*2150*3290 | 3700*2120*2800 | 6200*2700*4750 | |
| Machine Weight (kg) | 3400 | 6600 | 8300 | 18500 | 10300 | 52000 | |
| Main Motor Power (kw) | 5.5 | 7.5 | 7.5 | 18.5 | 18.5 | 45 | |
Bending Materials
