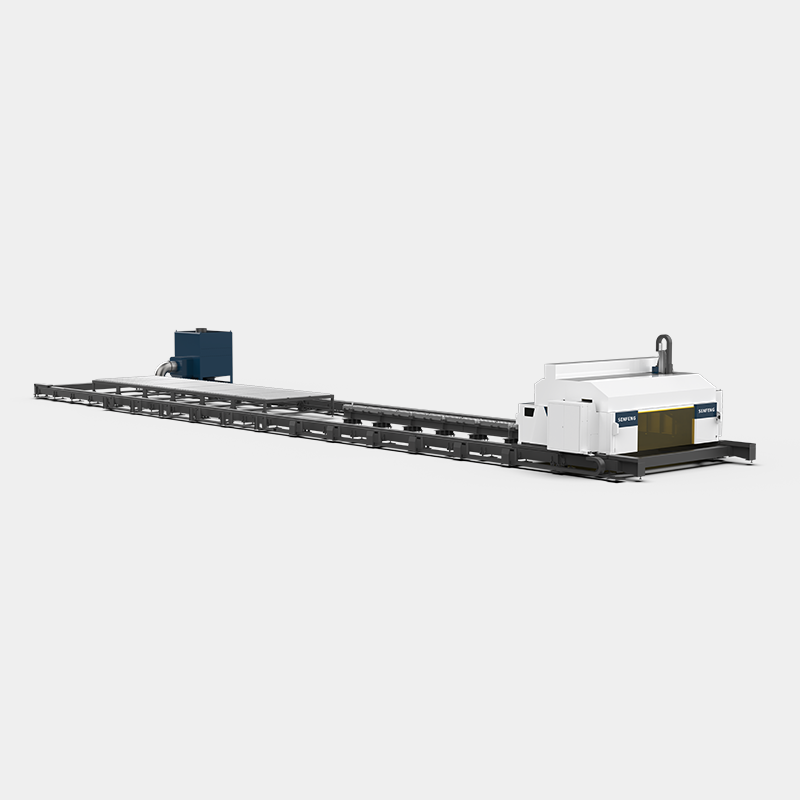

Large Profile Laser Cutting Machine for the Steel Structure Industry SF1500CH
A high-power, fully automated laser cutting line designed for fast, precise processing of large H-beams and structural steel.
Comes With?
⇲ Round Tube Diameter: 1.18–13.78 in
⇲ Square Tube Side Length: 1.18–13.78 in
⇲ Available in 208V/240V/480V/600V, 3-phase, 60Hz.
With an optional transformer, the machine can be adapted to meet various U.S. industrial power supply requirements.
⇲ CNC system special for H-shaped steel
⇲ Segmented heavy-duty machine tool
⇲ Special gantry steel-made beam
⇲ Dual stations for loading and unloading
Product Certification
FDA Certification
SUPERIOR PRODUCTS
2-YEAR WARRANTY
30 DAY MONEY BACK
GUARANTEE
LIVE USA
24/7/365 TECHNICAL SUPPORT
Product Features

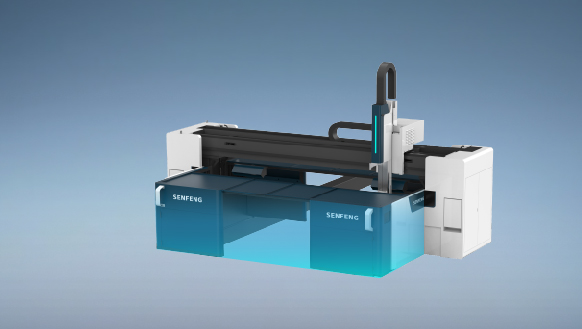

1. High Profile Cutting Ability
The machine, special for H-shaped steel, adopts gantry dual-driven structure to exert uniform force on beam and keep it hard to deform. It fits for large-format sheets. Both straight cutting and beveling are within its work scope.
- Laser power: 12-30kW
- Working area: 918.6×98.4ft
- Max cutting thickness: 1.9in
2. Special CNC System
The system is easy to be installed and operated. With visual operating interface, users can change technical parameters directly. It is also compatible with all Tekla architecture software and allows function upgrades as needed.
- Intelligent nesting
- Content-rich cutting database
- Export of work report
- Automatic detection of workpiece contour

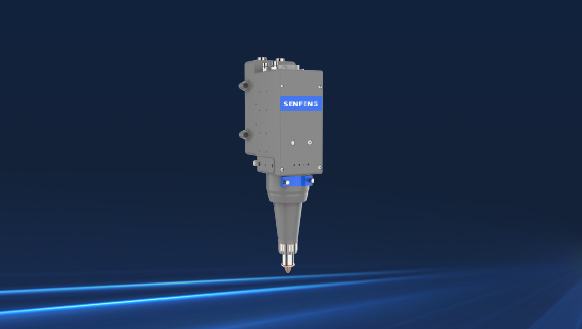

3. Self-developed Laser Cutting Head
This compact-sized head is designed for H-shaped steel, with integral cooling mode. Its unibody helps to lower demands on machine tool’s mechanical strength.
- QR code
Technical navigation available to lower its dependence on technicians - Cut high-reflectivity materials
Brass, AL alloy, stainless steel, galvanized sheet, etc.

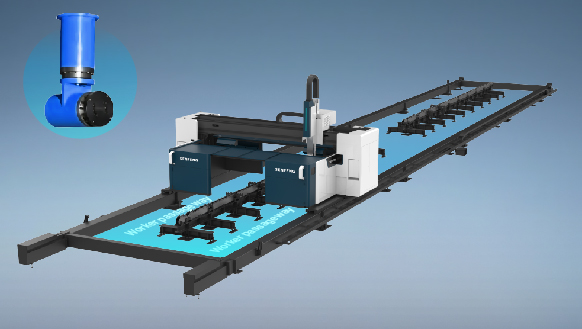

4. Put Work Convenience First
Designed as open-style, the machine takes into account of user’s cutting comfort. After being upgraded in design and functions, it can provide users with efficient, convenient and hassle-free service.
- A and B rotating axes
Swing angle ±180°, crash-proof and fast-response - Dual stations
Size-wise customization to make loading & unloading easier - Worker passageway
Facilitate workers to enter in platform for loading & unloading

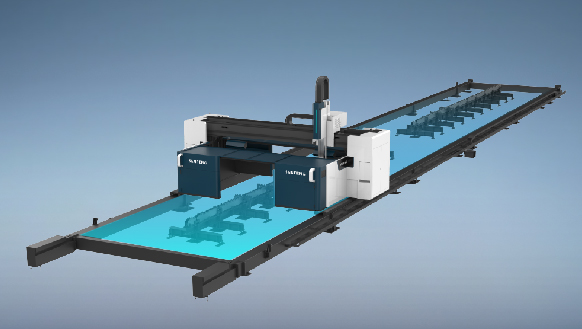

5. Custom-made Platforms
To cut various workpieces, we offer three kinds of optional accessories. Cutting is done on one side and loading & unloading are on the other side. In this way, work efficiency will be greatly enhanced.
- 2 sets of H-shaped steel support platforms
- 2 sets of sheet cutting platforms
- 2 sets of H-shaped steel+sheet cutting platforms
Technical Parameters
| Model | SF1500CH |
| Laser Power | 12–30 kW |
| Working Area | 918.6×98.4 ft |
| Max H Beam Width | 472.4 in |
| Max H Beam Height | 196.8 in |
| Max Thickness | ≤1.9 in (straight cutting)≤1.3 in (flange slab beveling) |
| Position Accuracy | ±0.00393 in |
| Reposition Accuracy | ±0.00196 in |
| Max Speed | 164 ft/min |
| Dimensions | 1169.6×194.2×118.9 ft |
| Power Supply | 380V, 3-phase, 50Hz/60Hz. (Standard configuration) Available in 208V/240V/480V/600V, 3-phase, 60Hz. Single-phase power is not supported. |

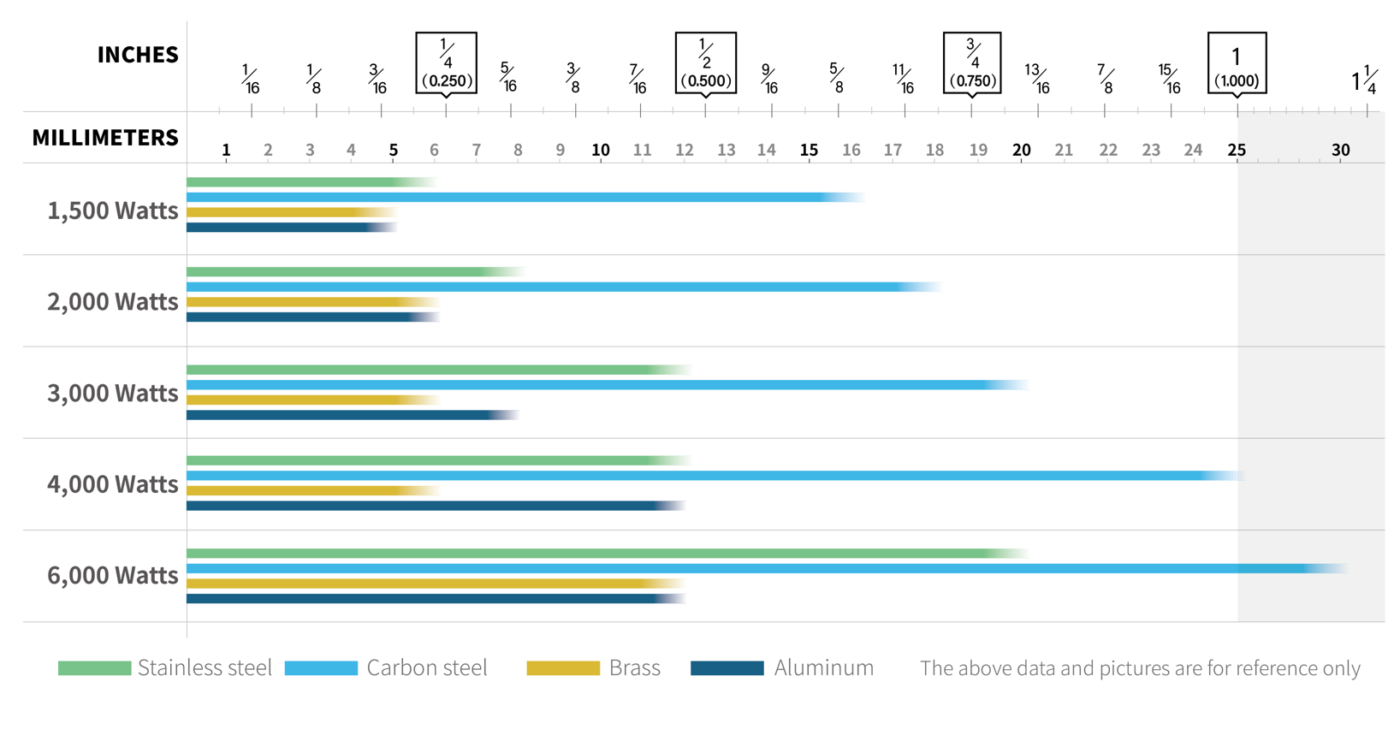

Cutting Capacity
