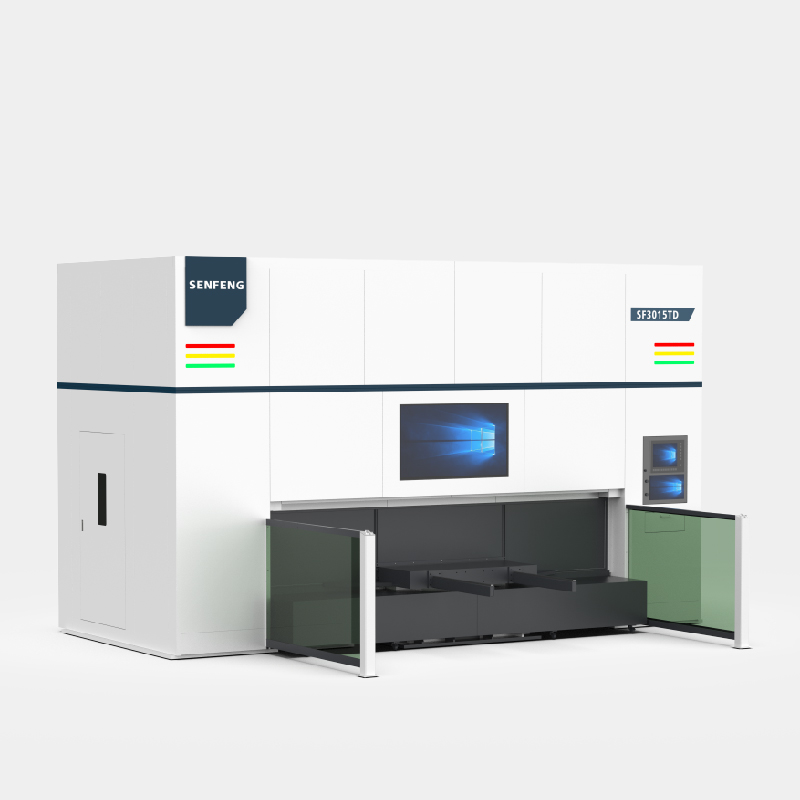

5’x10′ | 3D Five-axis Laser Cutting Machine
The SF3015TD 5-axis laser cutter features full 360° rotary cutting heads and high-speed, high-precision 5-axis motion, enabling complex surface and irregular workpiece cutting with excellent flexibility and stability.
Comes With?
⇲ Maximum Flat Workpiece Size: 9.84 × 4.92 ft
⇲ A-Axis Travel: ±135°
⇲ U-Axis Travel: ± N*360°
⇲ Available in 208V/240V/480V/600V, 3-phase, 60Hz.
With an optional transformer, the machine can be adapted to meet various U.S. industrial power supply requirements.
Product Certification
FDA Certification
SUPERIOR PRODUCTS
2-YEAR WARRANTY
30 DAY MONEY BACK
GUARANTEE
LIVE USA
24/7/365 TECHNICAL SUPPORT
Product Features

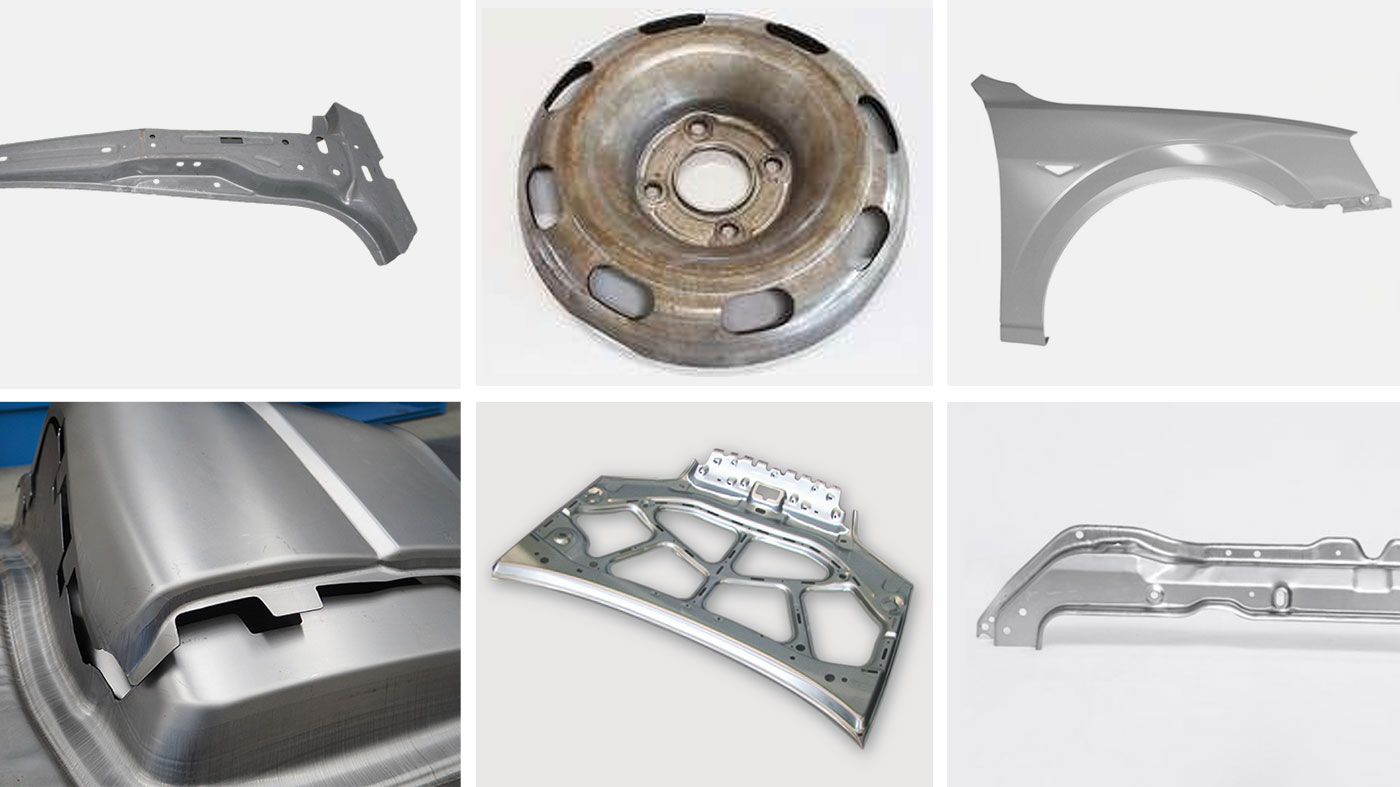

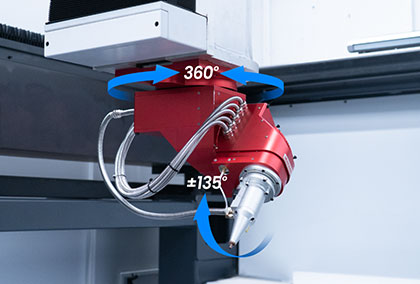

1. Adaptable for Complex 3D Workpieces with N×360° Cutting
To accommodate various complex curved 3D components, SENFENG has independently developed a 3D five-axis laser cutting head that can achieve N*360° rotation and ±135° swing, representing the highest level of manufacturing technology in the laser industry.
2. Innovative Marble Base for Higher Cutting Accuracy
The guide rail and rack base of the machine body are made of marble structure, which eliminate resonance and provide muscular rigidity, excellent stability, high compressive strength, and higher cutting positioning accuracy.

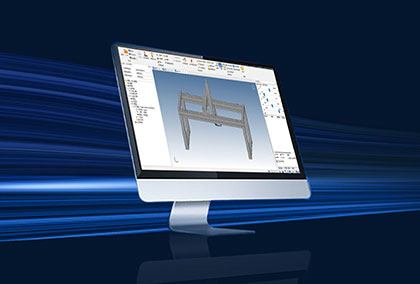

3. SENFENG High-end Intelligent System
Equipped with SENFENG self-developed CNC laser control system, the machine offers various functions and features such as a memory cache, powerful process database, quick operation, and efficient cutting.
- Dual screen monitoring
- Powerful teaching function
- Constant speed limit and stable processing function
- Five-axis RTCP tool tip the following function
- SENFENG professional CAM offline software
- Remote assistance module (optional)

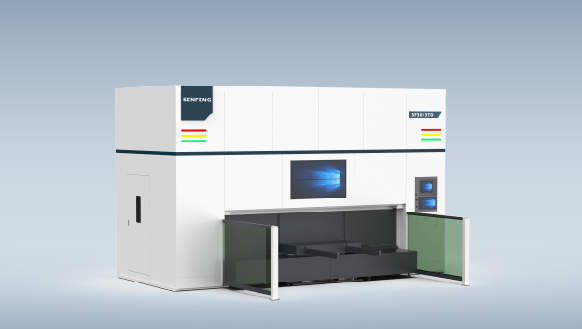

4. Two Types of Workbenches to Choose From
180-degree Dual Station Rotating Workbench for convenient cutting and simultaneous loading and unloading.
Dual Drive Servo High-speed Mobile Workbench

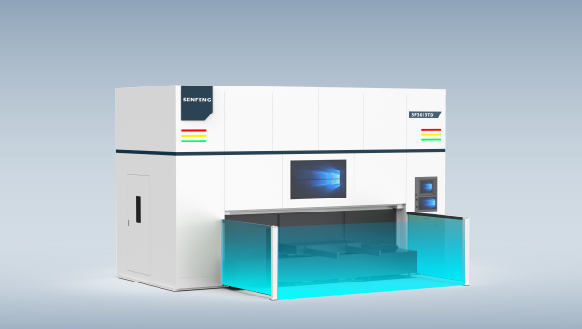

5. Dual Grating Protection Device
Fully enclosed machine cover with dual grating protection. The safety interlock protective door enables enclosed operation, while the intelligent safety light curtain prevents personnel from entering by mistake, ensuring human-machine safety.
Technical Parameters
| Main Parameters | SF3015TDH |
| Laser Power | 3–20 kW |
| Travel Range (L×W) | 118.1 × 59.0 in |
| X/Y-axis Positioning Accuracy | ±0.00393 in |
| X/Y-axis Repositioning Accuracy | ±0.00196 in |
| Max. No-load Speed | 328.0 ft/min |
| Max. Acceleration | 1 G |
| Machine Cooling | Air-cooled |
| A-axis Rotating Angle | ±135° |
| C-axis Rotating Angle | N×361° |
| Overall Dimensions (L×W×H) | 19.6 × 9.1 × 9.0 ft |
| Power Supply | 380V, 3-phase, 50Hz/60Hz. (Standard configuration) Available in 208V/240V/480V/600V, 3-phase, 60Hz. Single-phase power is not supported. |
Cutting Capacity
