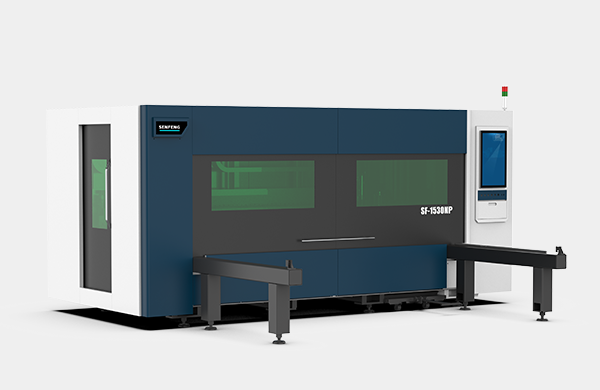

Fully Enclosed Compact Laser Sheet Cutter SF1530NP
SF1530NP is a compact, fully enclosed fiber laser cutting machine with an integrated laser source and control cabinet. The pull-out working platform and electric lifting door enhance safety, dust extraction efficiency, and operational convenience.
Comes With?
⇲ Push-pull platform paired with integrated leg supports
⇲ High-strength AL alloy beam encircled by safety light curtains
⇲ Intelligent dual-duct smoke-free dust extraction system
⇲ Available in 208V/240V/480V/600V, 3-phase, 60Hz.
With an optional transformer, the machine can be adapted to meet various U.S. industrial power supply requirements.
Product Certification
FDA Certification
SUPERIOR PRODUCTS
2-YEAR WARRANTY
30 DAY MONEY BACK
GUARANTEE
LIVE USA
24/7/365 TECHNICAL SUPPORT
Product Features

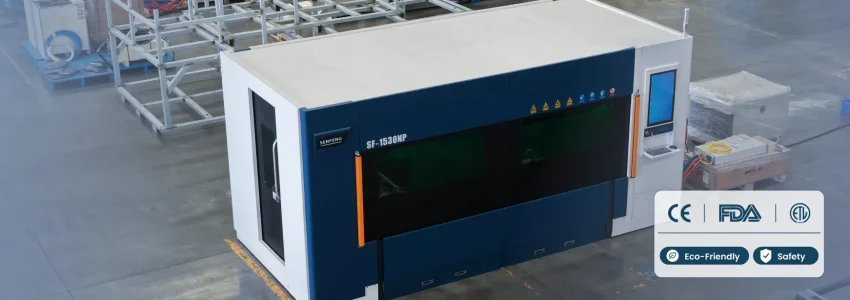

1. Fully-enclosed Design, Built for American & European Markets
This compact model features a fully-enclosed design that gives priority to operator safety. With a strong focus on safety and eco protection, it’s a top choice for users in both U.S. and Europe.
- Laser Power: 1.5-6kW
- Max. No-load Speed: 328’/min
- Load of Single Platform: 1100kg
- Meet CE, FDA, ETL, and other major certifications

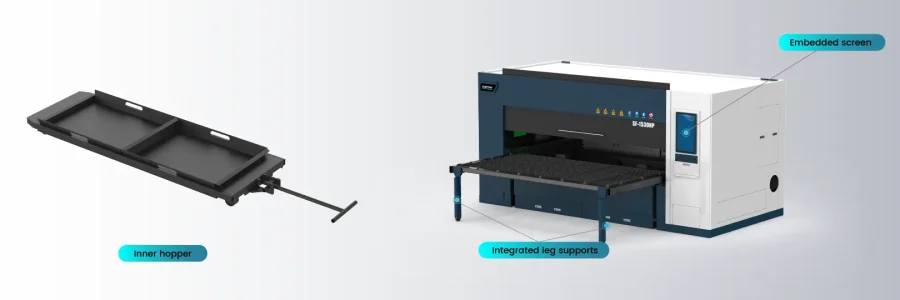

2. New Appearance with Easy Operations
Its screen is designed as embedded to avoid collision; new integrated leg supports are recently added to save total footprint, prop up the platform firmly and make loading easier; pick-up trolley is equipped with inner hopper to facilitate waste cleanup.
3. New Electric Lifting Door at High Safety
The fully-enclosed automatic lifting door enables rapid opening and closing via electric control, eliminating the need for manual operations and helping out with the machine’s sealing performance and fume extraction effects.

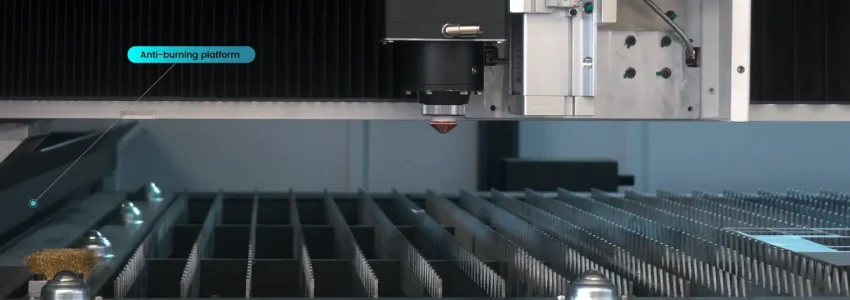

4. Anti-burning Platform for Long Lifespan
The platform is covered with anti-burning structures on both sides to prevent sparks from damaging dust cover, which helps extend service life of dust cover and surrounding precision components and reduce machine failures caused by slag accumulation.
5. Intelligent Smoke-Free Dust Extraction System
The smoke-free effects are realized by adopting double air duct system, 3 spanning zones and follow-up air valves that are formed from air outlet and exhaust inlet to speed up air circulation.

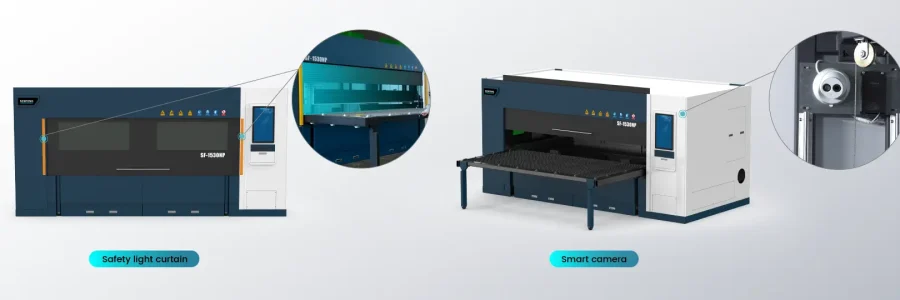

6. Take Safety Measures to Achieve Euro-American Certifications
Safety light curtains installed at front and rear of beam can stop the machine instantly in case of any intrusion. Smart cameras will also work with safety lock alarm device to widen the scope observed, minimize blind spot and protect both man and machine.
7. Fit into One 20GP Container at Low Shipping Costs
This compact model, with small footprint, is easily loaded into a 20GP container with no need for teardown. As thus, oversea transport becomes simpler at less time and costs.
Technical Parameters
| Model | SF1530NP |
| Laser Power (kW) | 1.5-6 |
| Working Area (L×W, in) | 119.2 × 59.4 |
| X/Y-axis Positioning Accuracy (in) | ±0.00196 |
| X/Y-axis Repositioning Accuracy (in) | ±0.00078 |
| Max No-load Speed (ft/min) | 328 |
| Max. Acceleration (G) | 1 |
| Max. Load of Platform (lb) | 2425 |
| Overall Dimensions (L×W×H, in) | 193.7 × 87.5 × 91.2 |
| Power Supply | 380V, 3-phase, 50Hz/60Hz.(Standard configuration) Available in 208V/240V/480V/600V, 3-phase, 60Hz. Single-phase power is not supported. |

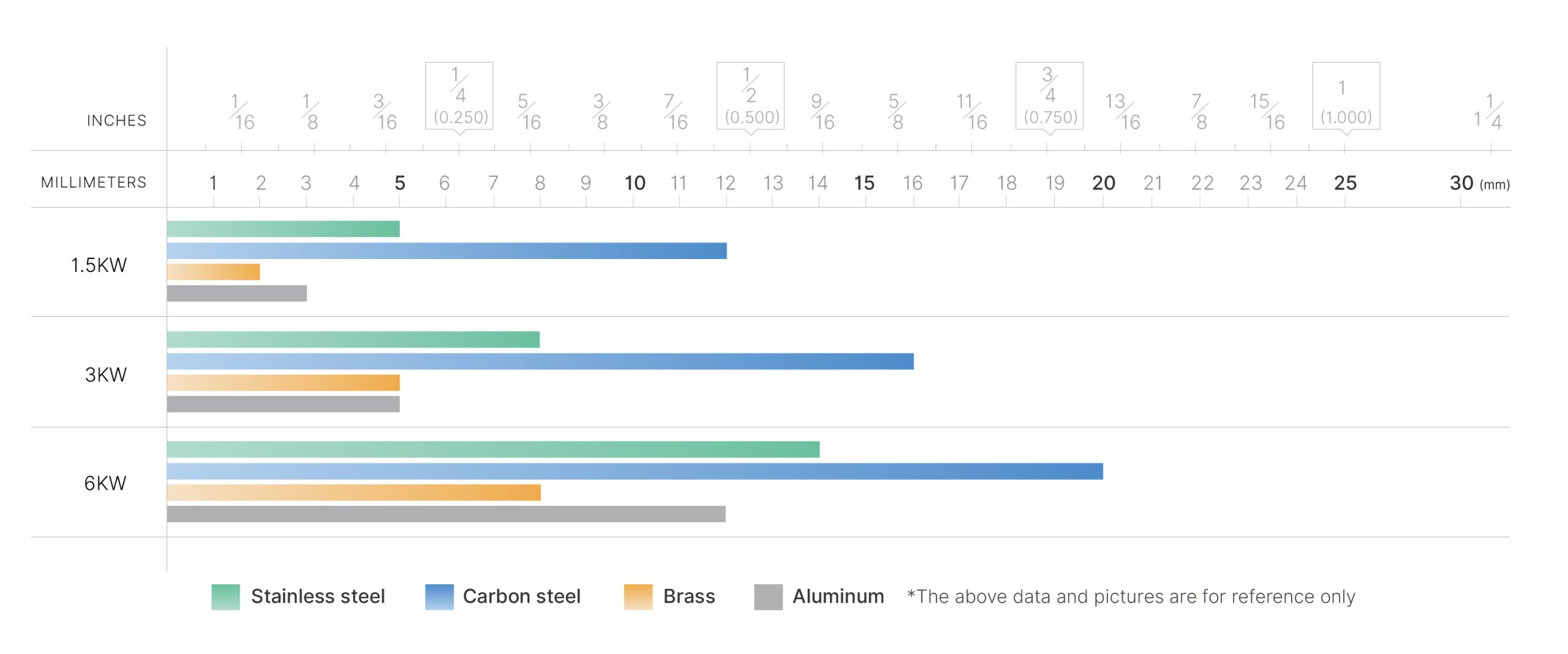

Cutting Capacity
