Fiber Laser Sheet Cutter SF1530N
Upgraded with the maximum power increased from 4kW to 12kW.
Comes With?
⇲ Working area: 10×5ft
⇲ Available in 208V/240V/480V/600V, 3-phase, 60Hz.
With an optional transformer, the machine can be adapted to meet various U.S. industrial power supply requirements.
⇲ Water Cooler
⇲ Transformer
⇲ Stabilizer
⇲ Fan
⇲ The pull-out single-platform structure has a smaller footprint.
Product Certification
FDA Certification
SUPERIOR PRODUCTS
2-YEAR WARRANTY
30 DAY MONEY BACK
GUARANTEE
LIVE USA
24/7/365 TECHNICAL SUPPORT
Product Features
1. Fully Surrounded Structure
Avoid laser radiation to ensure process safety and compliance with local requirements.

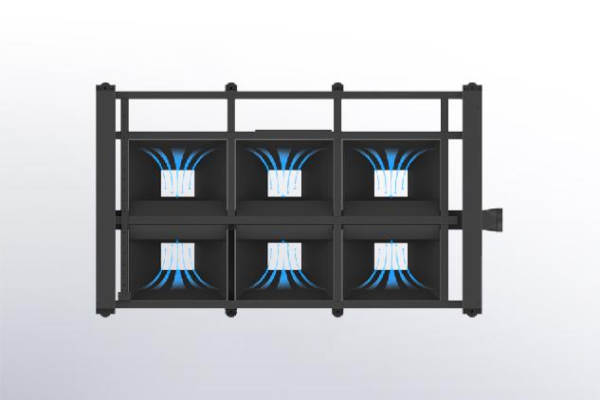

2. Partitioned Smoke Exhaust System
Locate the cutting position and automatically exhaust the smoke in different areas to make the smoke removal more efficient.

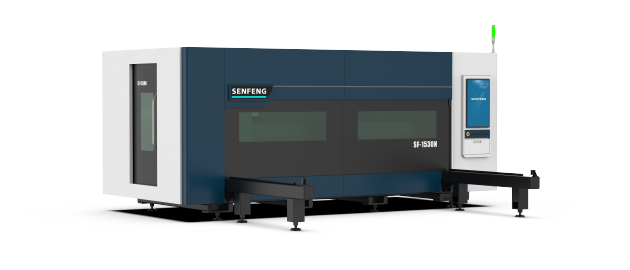

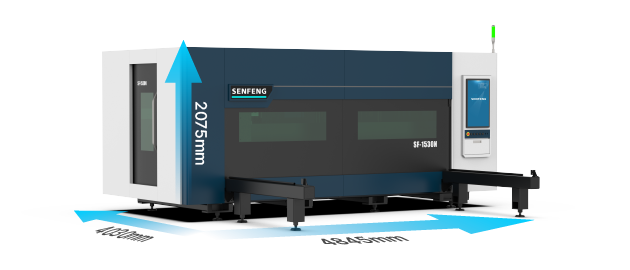

3. Single Platform and Small Footprint
Unlike others double-platform cutters, the single-platform structure has a smaller footprint.

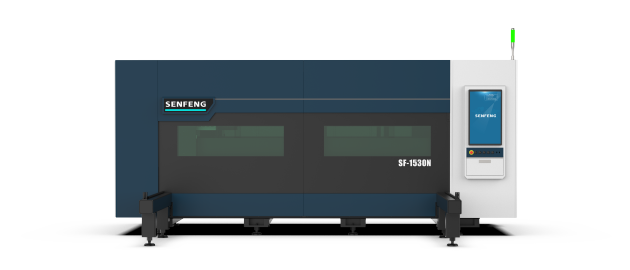

4. Pull-out Platform
Convenient for loading and unloading while meeting the needs of conventional sheet metal processing.
5. Save Cost

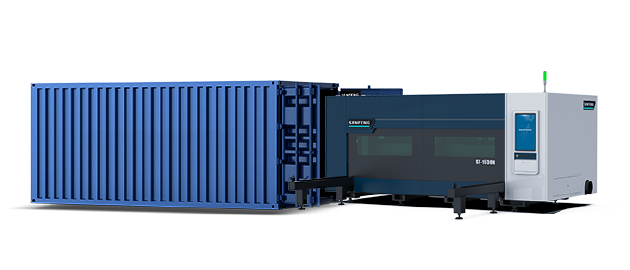

No need to disassemble the machine at all, a 20ft container can be done, saving your freight and installation costs.
6. CNC Cutting System-FSCUT2000
FSCUT2000 is a full-featured open-loop control system specially launched for the sheet metal processing industry. It has the characteristics of stability and reliability, convenient deployment, easy debugging, safe production, rich functions, and excellent performance; it supports and provides modular, personalized, automated, and information-based solutions to realize memory caching, and has a powerful cutting process database for different thicknesses and plates.
Technical Parameters
| Main Parameters | SF1530N |
| Laser Power | 1.5kW-12kW |
| Working Area (L*W) | 10′ * 5′ |
| X/Y-axis Positioning Accuracy | ±0.00196in |
| X/Y-axis Repositioning Accuracy | ±0.00078in |
| Max No-load Speed | 328’/min |
| Max Load of Platforms | 2425lbs |
| Overall Dimensions (L*W*H) | 16.4′ * 7.6′ * 6.8′ (excluding support legs) |
| Power Supply | 380V, 3-phase, 50Hz/60Hz. (Standard configuration) Available in 208V/240V/480V/600V, 3-phase, 60Hz. Single-phase power is not supported. |

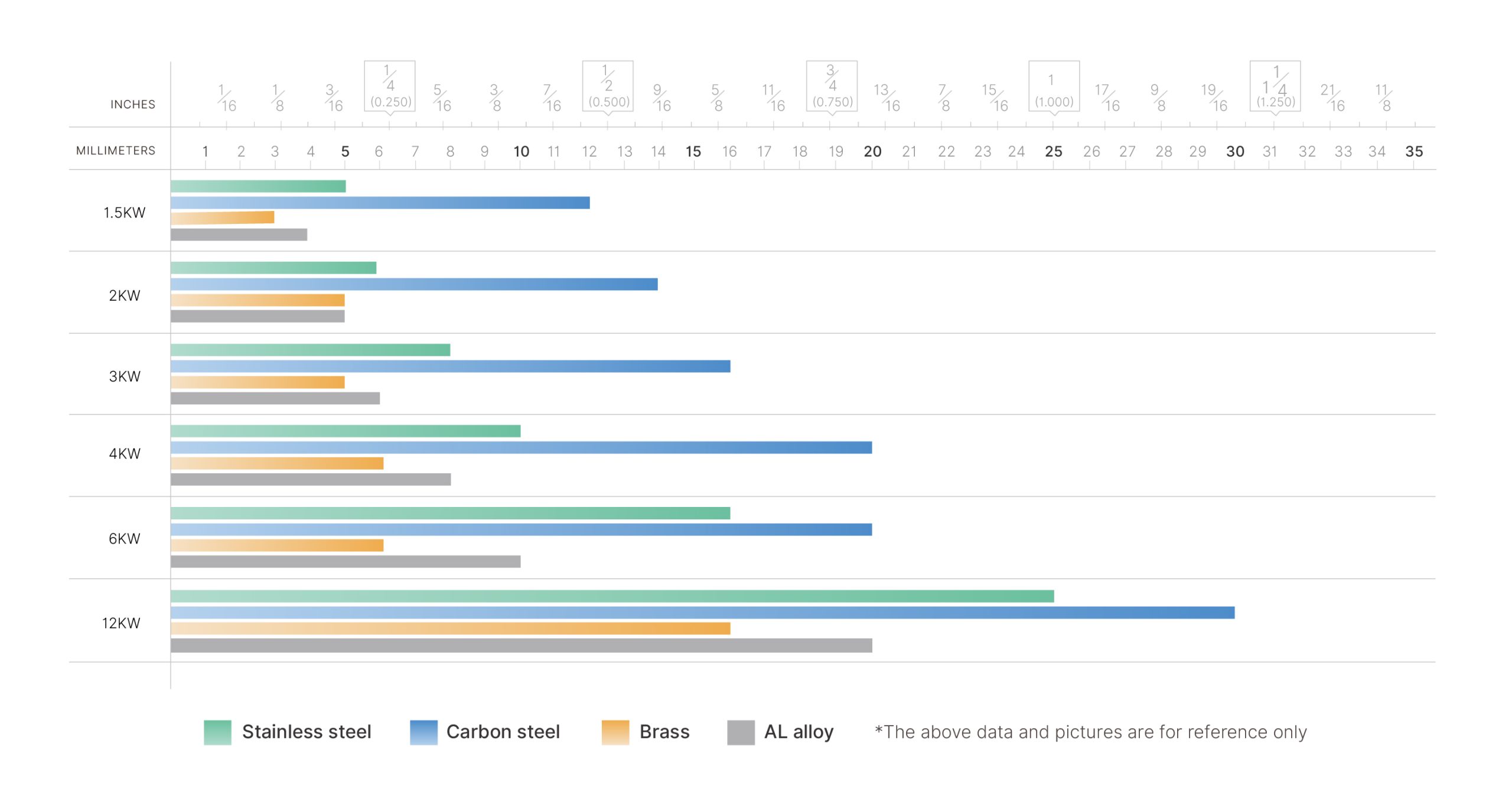

Cutting Capacity
