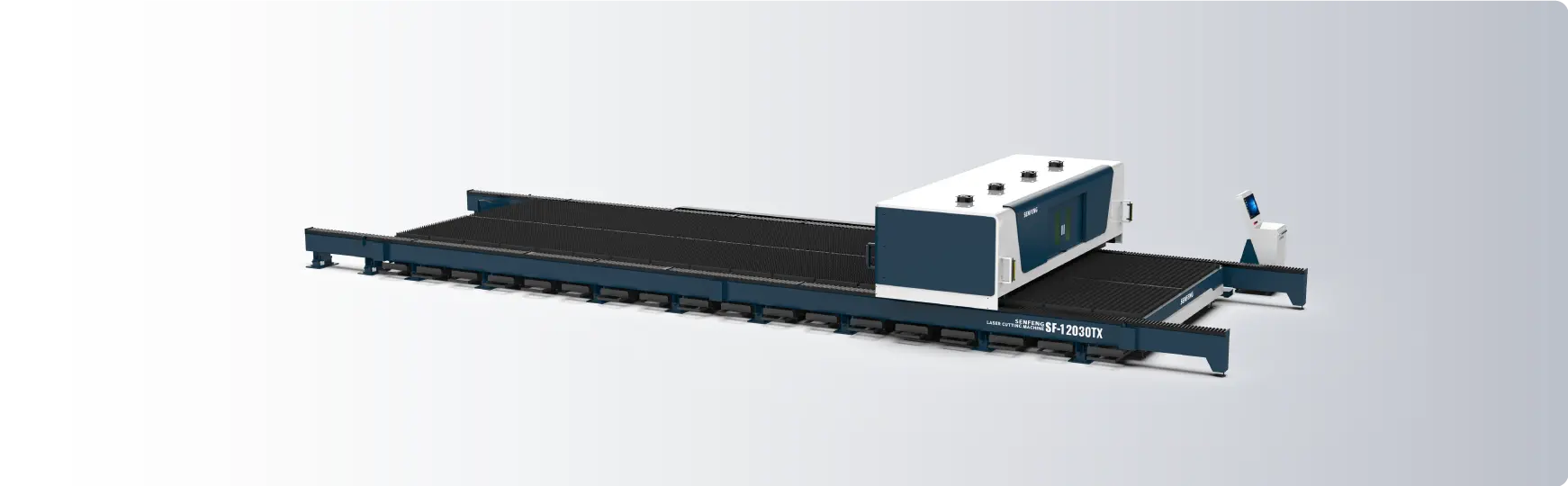

Ultra-large Format ±45° Beveling Plate Laser Cutter TX Series
This large-format machine supports straight and bevel cutting. Its modular design allows customized size for processing ultra-long (≥236 inch) and heavy plates, ensuring reliable welding afterward.
Comes With?
⇲ High-end intelligent bus-based CNC system
⇲ Special ground-rack bed together with aerospace-grade AL beam
⇲ Smart follow-up blow-suction dust extraction system
⇲ Available in 208V/240V/480V/600V, 3-phase, 60Hz.
With an optional transformer, the machine can be adapted to meet various U.S. industrial power supply requirements.
Product Certification
FDA Certification
SUPERIOR PRODUCTS
2-YEAR WARRANTY
30 DAY MONEY BACK
GUARANTEE
LIVE USA
24/7/365 TECHNICAL SUPPORT
Ultra-large Format ±45° Beveling Plate Laser Cutter TX Series
Bevel the Extra-large Plate in Multiple Angles
The large-format laser cutter enables both flat and bevel cutting in one setup, so you can cut large plate as a single piece and make subsequent welding easier. It’s an ideal solution for heavy industrial applications.
Laser Power
12-60kW
Max. carbon steel cutting
4.7 inch
Max. Beveling Angle
45°
Max. No-Load Speed
328 '/min

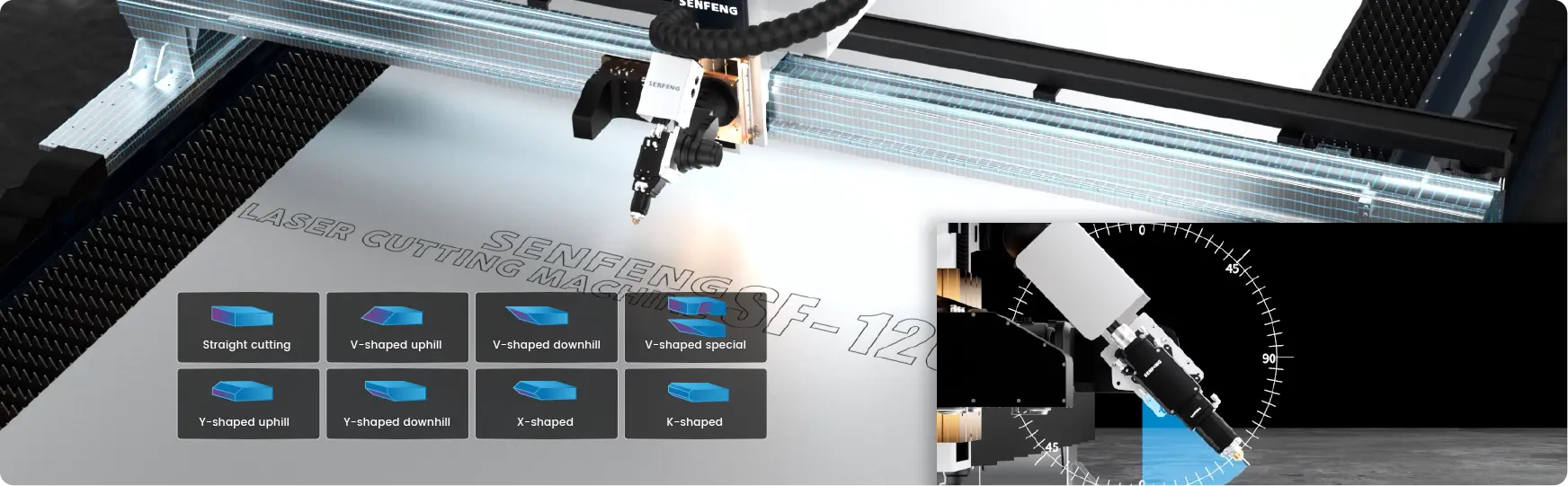

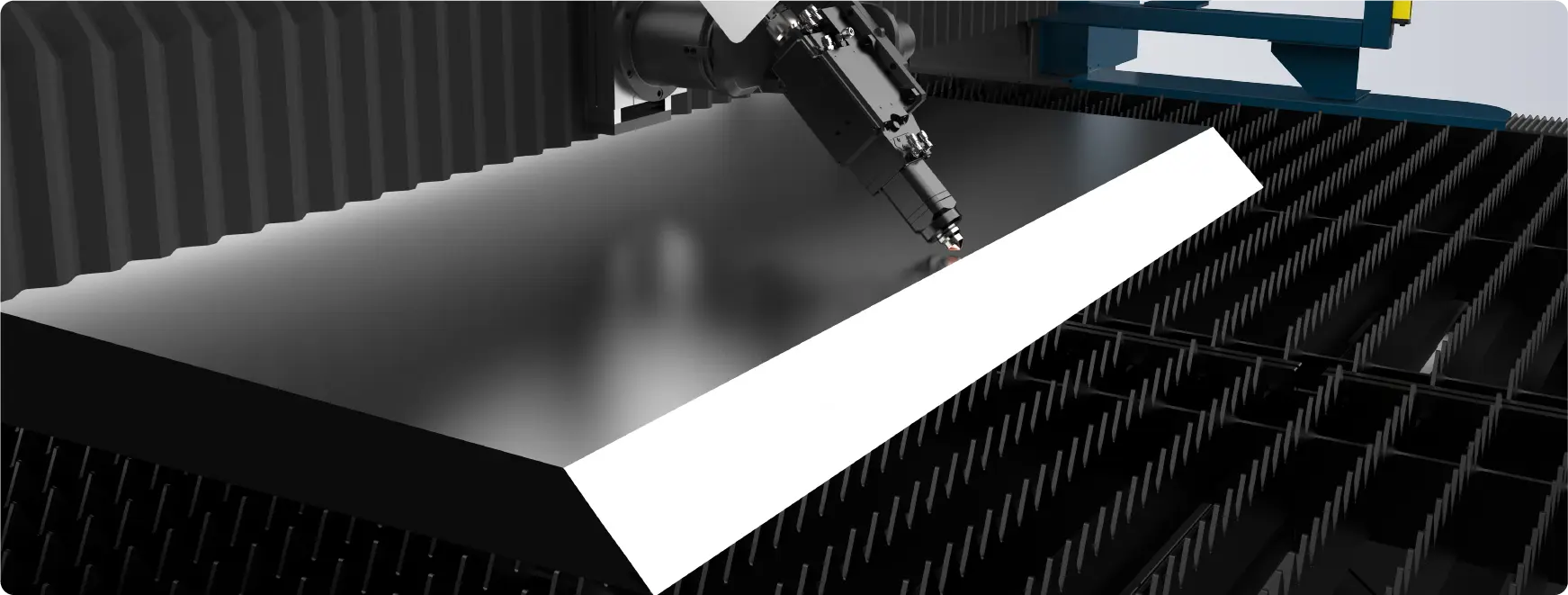

Adopt ±45° Bevel Laser Cutting Head
Paired with a five-axis 3D bus-based control system, this high-end laser cutting head goes beyond conventional limits to deliver ±45° beveling in V, X, Y and K shapes.

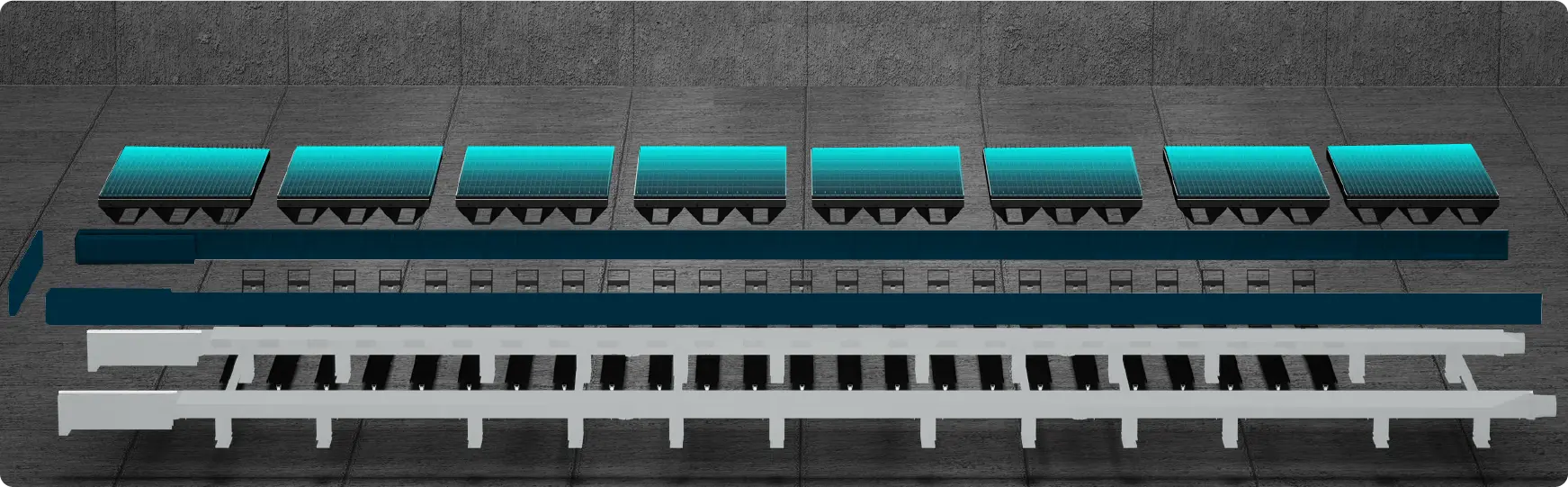

Heavy-duty Machine Bed at High Stability
The special floor-mounted rack bed offers exceptional stability and rigidity, maintaining high accuracy even during fast moving. Its modular, spliced design will simplify both processing of oversized workpieces and machine transport.

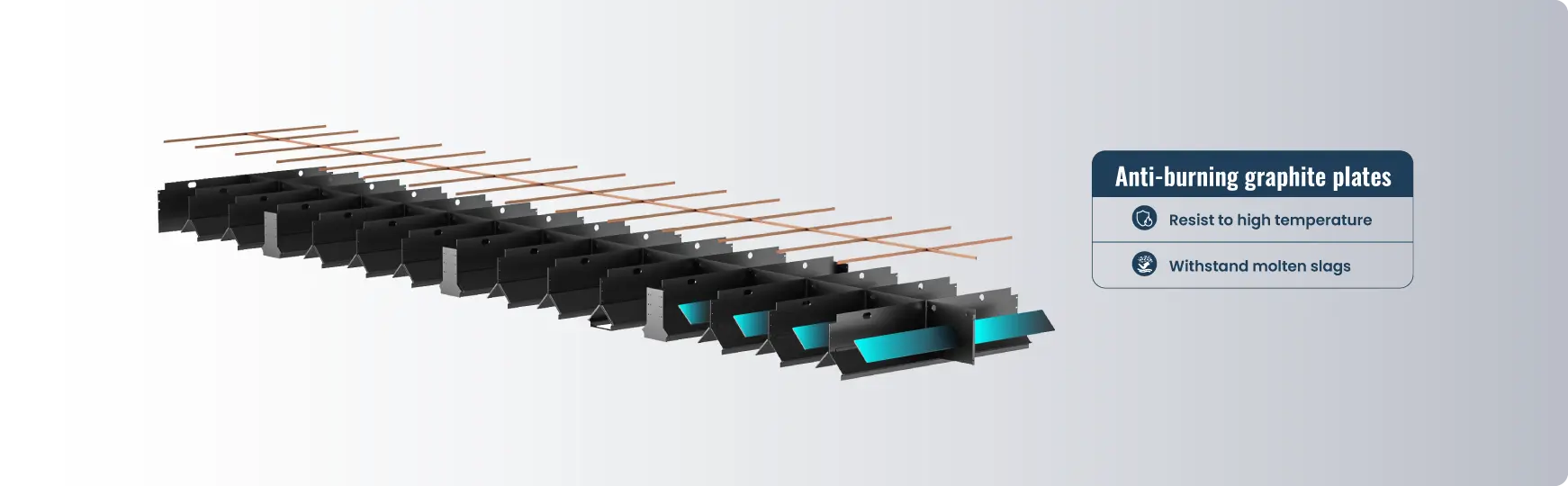

Graphite Plates Featuring Burn Protection
The machine bed is covered with graphite plates that resist high temperature, block laser penetration and stand up to molten slags. This protects the platform and bed from destroy, prolonging the machine’s service life.
Fully-enclosed Beam for Safety & Cleaner Operation (Optional)
An enclosed protective chamber integrated into the beam moves in sync with laser cutting head, helping contain fumes and block laser radiation for safer, more eco-friendly operations.
- Flash Piercing
- Vision-based Nesting
- Automatic Nozzle Changing
- Perfect Finish Cut
- Smooth Piercing
- Progressive Piercing
- Deslag Piercing
- Smooth MicroJoint
- Jump Function
- Auto Edge Detection
- Countersink Cutting
Technical Parameters
| Parameter | SF6030TX | SF8040TX | SF12030TX | SF14030TX | SF30040TX | SF36030TX | SF50030TX |
| Laser Power (kW) | 12–60 | 12–60 | 12–60 | 12–60 | 12–60 | 12–60 | 12–60 |
| Working Area (Straight Cut) | 236.2 × 118.1 in | 314.9 × 157.4 in | 472.4 × 118.1 in | 551.1 × 118.1 in | 1181.1 × 157.4 in | 1417.3 × 118.1 in | 1968.5 × 118.1 in |
| Working Area (Bevel Cut) | 212.5 × 78.7 in | 291.3 × 118.1 in | 448.8 × 78.7 in | 527.5 × 78.7 in | 1157.4 × 118.1 in | 1393.7 × 78.7 in | 1944.8 × 78.7 in |
| X/Y Positioning Accuracy | ±0.00001 in | ±0.00001 in | ±0.00001 in | ±0.00001 in | ±0.00001 in | ±0.00001 in | ±0.00001 in |
| X/Y Repositioning Accuracy | ±0.00196 in | ±0.00196 in | ±0.00196 in | ±0.00196 in | ±0.00196 in | ±0.00196 in | ±0.00196 in |
| Max No-load Speed | 328.0 ft/min | 328.0 ft/min | 328.0 ft/min | 328.0 ft/min | 328.0 ft/min | 328.0 ft/min | 328.0 ft/min |
| Max Load of Platform | 31184.3 lbs | 55334.4 lbs | 62355.3 lbs | 72741.0 lbs | 207234.5 lbs | 186981.6 lbs | 259035.6 lbs |
| Overall Dimensions (L×W×H) | 27.4 × 15.6 × 6.4 ft | 35.0 × 18.8 × 6.4 ft | 51.3 × 15.6 × 6.4 ft | 58.5 × 15.6 × 6.4 ft | 121.1 × 18.8 × 6.4 ft | 149.3 × 15.6 × 6.4 ft | 206.7 × 15.6 × 6.4 ft |
| Power Supply | 380V, 3-phase, 50Hz/60Hz. (Standard configuration) Available in 208V/240V/480V/600V, 3-phase, 60Hz. Single-phase power is not supported. |
||||||

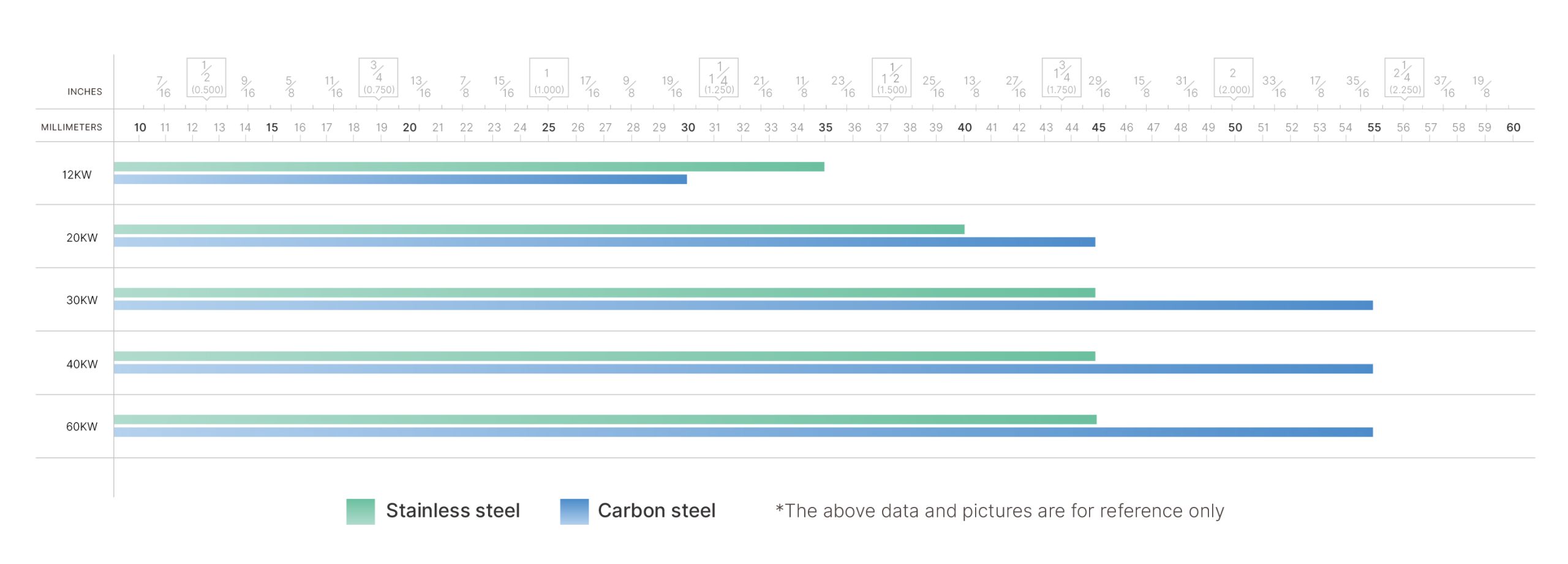

Cutting Capacity
