In the competitive landscape of industrial manufacturing, the 6kW laser cutting machine represents a pivotal for metal fabrication. This guide details how this specific power level delivers an optimal balance of processing speed, cutting capacity, and operational economy.

I. The 6kW Advantage: Power, Speed, and Versatility

The 6kW laser cutter occupies a strategic sweet spot, offering distinct advantages over both lower and higher-power alternatives:

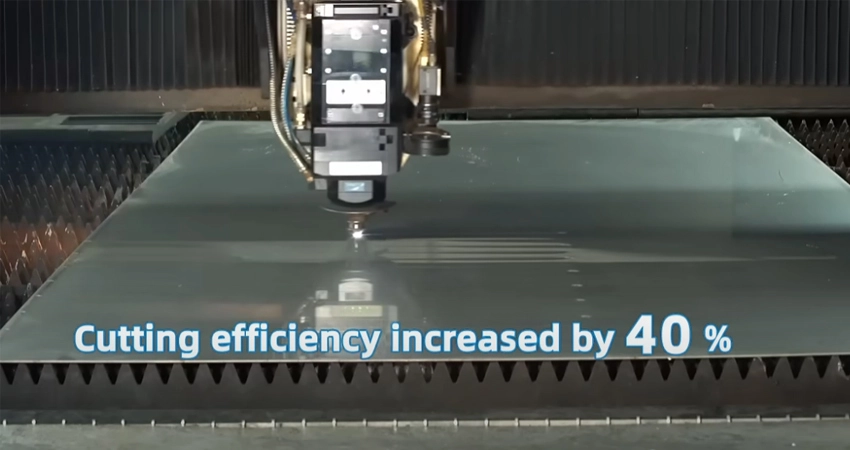

• Enhanced Cutting Speed: Increases throughput by up to 50% on thin to medium-thickness materials compared to 4kW systems, significantly reducing cycle times.

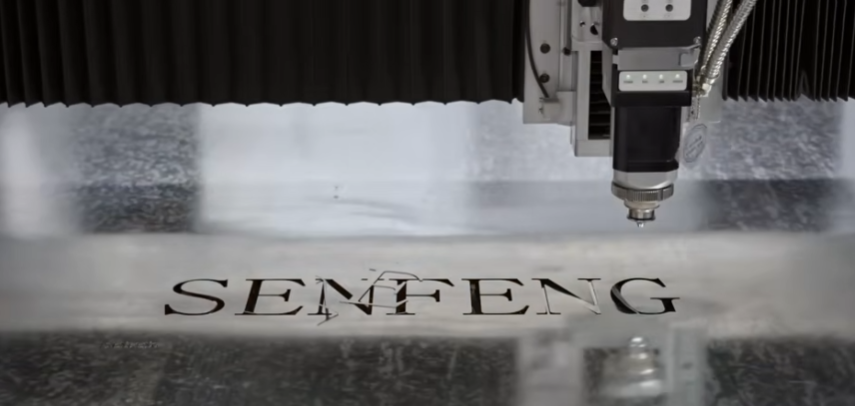

• Expanded Material Capacity: Capable of cleanly cutting up to 25 mm carbon steel and 20 mm stainless steel, broadening application scope.
• Superior Energy Efficiency: With electro-optical conversion efficiency often exceeding 40%, it lowers energy consumption and cost-per-part.
• Broad Material Versatility: Effectively processes carbon steel, stainless steel, aluminum, brass, and copper with minimal parameter adjustment.

II. Core Performance: 6kW Fiber Laser Cutting Parameters Reference

To translate the theoretical power of 6kW fiber laser into practical production planning, we have complied reference cutting data based on a machine equipped with a advanced laser source. The following parameters serve as a reliable benchmark for assessing the machine’s efficiency and capability across its entire operational range.

Cutting Parameters for Stainless & Carbon Steel

Material	Thickness (mm)	6kW	Gas
		Cutting speed (m/min)
Stainless steel	1	45-55	N2/Air
	2	30-35	N2/Air
	3	18-22	N2/Air
	4	10-14	N2/Air
	5	8.0- 10	N2/Air
	6	4.3-5.0	N2/Air
	8	3.0-4.0	N2/Air
	10	1.8-2.5	N2/Air
	12	1.0-1.5	N2/Air
	14	0.8-1.2	N2/Air
	16	0.6-1.0	N2/Air
	20	0.4-0.7	Air
Carbon steel	1	40-45	N2/Air
	2	20-28	N2/Air
	3	12-17	N2/Air
	4	8.0- 10	N2/Air
	6	2.5-3.3	O2
	8	2.3-3.0	O2
	10	2.0-2.5	O2
	12	1.8-2.2	O2
	14	1.4-1.7	O2
	16	1.0-1.6	O2
	20	0.6-1.2	O2
	25	0.5-0.7	O2
	30	0.4-0.6	O2

Cutting Parameters for Brass & Aluminum

Material	Thickness (mm)	6kW	Gas
		Cutting speed (m/min)
Brass	1	40-45	N2/Air
	2	20-25	N2/Air
	3	12-15	N2/Air
	5	5.0-6.0	N2/Air
	6	3.0-4.0	N2/Air
	8	1.5-2.5	N2/Air
	10	1.0-1.5	N2/Air
	12	0.8-1	N2/Air
Aluminum	1	50-55	N2/Air
	2	25-30	N2/Air
	3	13-16	N2/Air
	4	10-13	N2/Air
	5	5.0-6.0	N2/Air
	6	3.0-4.0	N2/Air
	8	2.0-3.0	N2/Air
	10	1.0-2.0	N2/Air
	12	0.7-1.2	N2/Air
	14	0.5-1.0	N2/Air
	16	0.4-0.6	N2/Air

Note: The parameters shown above are based on standard test conditions with a Raycus laser source and are intended as a reference. For optimal results in your specific application, fine-tuning based on the actual machine configuration, material grade, surface condition, and desired edge quality is recommended.

III. Key Technical Specifications for Reliable Performance

Modern 6kW fiber laser cutting machine are defined by robust technical specifications that ensure reliability and precision:

• Laser Source Reliability: The laser source is protected against dust and high-pressure water jets, ensuring durability in demanding workshop environments.
• Exceptional Precision: A positioning accuracy of ±0.03mm/m guarantees consistent, high-quality cuts and tight tolerance.
• Rapid Processing: Maximum acceleration of 1.5-2G enables high-speed positioning and reduced non-cutting time.
• Comprehensive Capability: A single system can handle a wide range of material types and thickness, simplifying production workflows.

IV. Automation Integration: Enabling Lights-Out Manufacturing

The true potential of a 6kW fiber laser cutter for manufacturing is unlocked through seamless automation, enabling continuous production.

• Dual-Pallet Systems: Allow for simultaneous sheet loading on one pallet while cutting occurs on another, eliminating idle time.
• Material Storage Towers: Integrated 6-12 shelf configurations support extended unmanned manufacturing cycles.
• Intelligent Part Handling: Automated sorting and removal of finished parts prevent nesting interference and streamline post-processing.
• Smart Software: Advanced nesting algorithms maximize material yield, while real-time monitoring provides production oversight.

V. Calculating the ROI of a 6kW Laser Cutter

Investing in 6kW laser cutting equipment delivers a compelling return on investment through multiple channels:

• Higher Throughput: 40-60% increased production capacity compared to 4kW machines.
• Improved Material Yield: Advanced nesting can typically improve material utilization by 3-8%.
• Reduced Labor Costs: Automated loading can cut operator hands-on time by up to 50%.
• Lower Energy Consumption: High efficiency translate to 15%-25% less power used per part.
• Reduced Operational Costs: Optimized Assist gas usage and extended consumable life further lower running expenses.

VI. Key Considerations for Choosing Your 6kW Fiber Laser Cutting Machine

Selecting the right 6kW laser cutting machine for metal requires evaluating your specific production needs:

• Workbed Size: Standard (e.g., 3×1.5m formats) or custom size to match your typical workpiece demensions.
• Automation Level: Choose the level of automation that aligns with your production volume and labor strategy.
• Control System: Prioritize use-friendly CNC interface with comprehensive material database for easy operation.
• Service and Support: Ensure access to reliable technical support, training, and a readily available supply of spare parts.

VII. Industry Applications: Transforming Metal Fabrication

High precision laser cutting with 6kW power is revolutionizing sectors including:

Construction & Infrastructure: Structural steel, support beams, and building frameworks.

• Transportation & Automotive: Chassis parts, body components, and custom brackets.
• Industrial Machinery: Equipment frames, protective enclosures, precision plates.
• Agricultural Manufacturing: Durable equipment components, and structural elements.
• Energy Sector: Mounting systems for solar panels and components for wind turbines.

VIII. Partnering with an Industry Leader: The SENFENG Advantages

When investing in advanced manufacturing technology, the choice of supplier is critical. SENFENG, as a manufacturer with over 700 patents and a global presence, offers several key differentiators for their 6kW fiber laser cutting machines:

• Proven Expertise: Models like the SF3015H can be configured from 1.5kW to 6kW, demonstrating a scalable and customizable approach to meet diverse industrial cutting needs.
• Comprehensive Range: From standard machines to super-large format models like the SF24040R, SENFENG provides solutions for various applications, all supported by flexible automation options.
• Vertical Integration: Controlling the production process from source to assembly ensures consistent quality and reliability across their entire product line.
• Global Support Network: With a presence in over 100 countries, SENFENG provides accessible technical assistance and spare parts, minimizing potential downtime.

Conclusion

The 6kW fiber laser cutting machine is a strategic asset for manufacturers aiming to boost productivity, precision, and profitability. Its advantages in speed, versatility, and efficiency make it a cornerstone technology for modern laser cutting for industries.

As manufacturing demands grow, adopting this technology positions businesses for long-term competitiveness. Partnering with an experienced and reliable provider is essential to maximizing your investment.

Ready to see how a 6kW fiber laser cutter can transform your production line? Contact SENFENG today to request a personalized quote or schedule a live demonstration with your materials.
