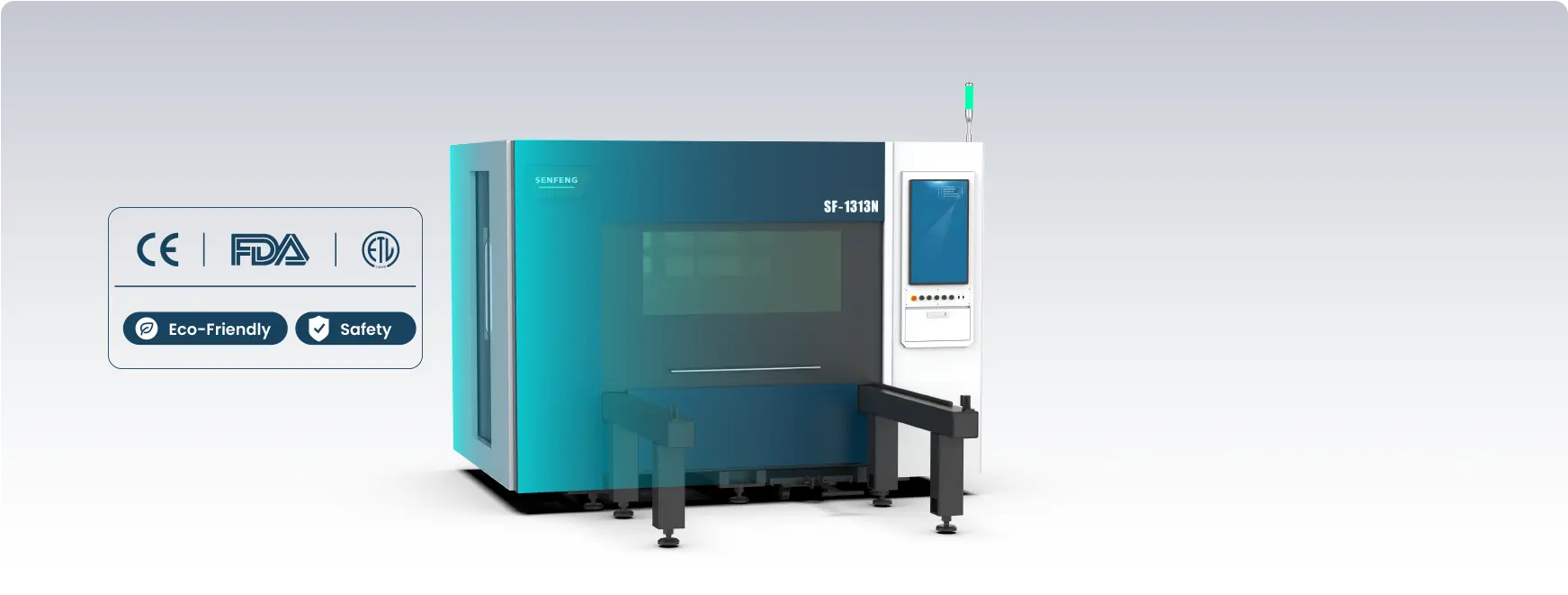

4’x4′ | Low-power High-precision Plate Laser Cutter SF1313N
This compact, high-precision machine requires minimal workshop space and can cut intricate patterns with smooth edges and minimal taper. It offers easy operation and low investment cost, making it ideal for startups and small fabrication businesses.
Comes With?
⇲ Working area: 4’x4′
⇲ Max. no-load speed: 328’/min
⇲ Load of platform: 300kg
⇲ Available in 208V/240V/480V/600V, 3-phase, 60Hz. (1.5-2kW available with single-phase power)
With an optional transformer, the machine can be adapted to meet various U.S. industrial power supply requirements.
Product Certification
FDA Certification
SUPERIOR PRODUCTS
2-YEAR WARRANTY
30 DAY MONEY BACK
GUARANTEE
LIVE USA
24/7/365 TECHNICAL SUPPORT
Product Features
1. Born for Compact Workshop under Eco-friendly Request
This model is particularly designed as fully-enclosed structure with small footprint for some compact workshops that are asked to meet eco-friendly requirements but face with limited space and small workpiece cutting.
Laser Power: 1.5-6kW
Max. Carbon Steel Cutting Thickness: 0.79″
Max. No-Load Speed: 328’/min
Load Of Platform: 300kg

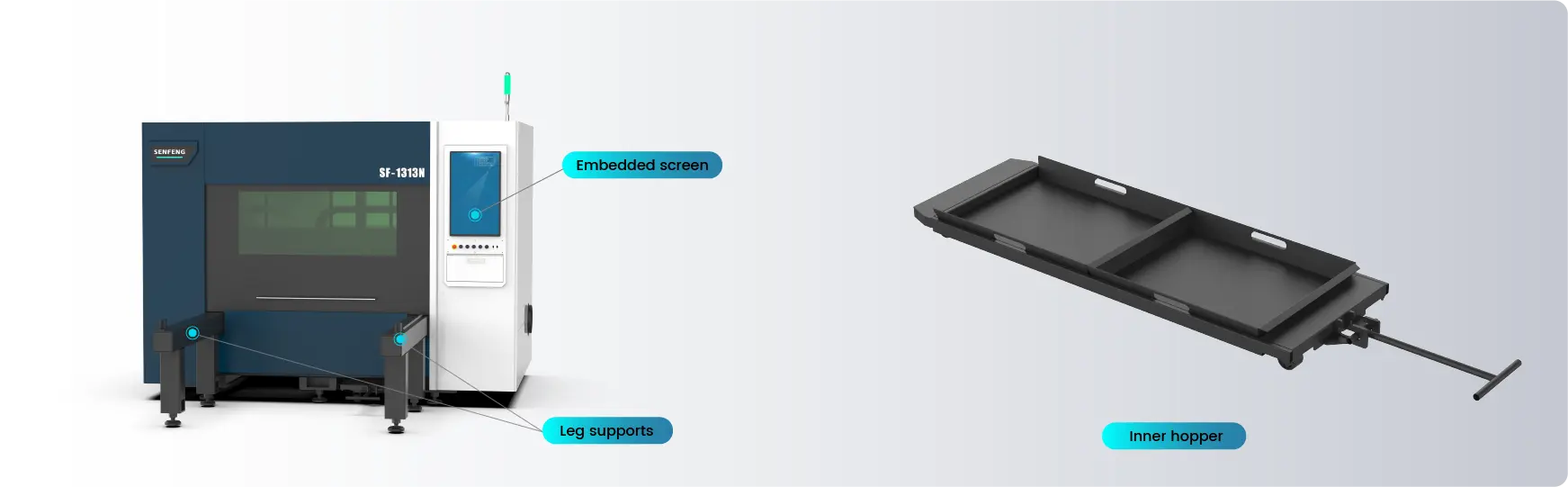

2. New Appearance with Easy Operations
Its operating screen is designed as embedded to avoid collision; new leg supports are recently added to make loading & unloading easier; pick-up trolley is equipped with inner hopper to facilitate waste cleanup.

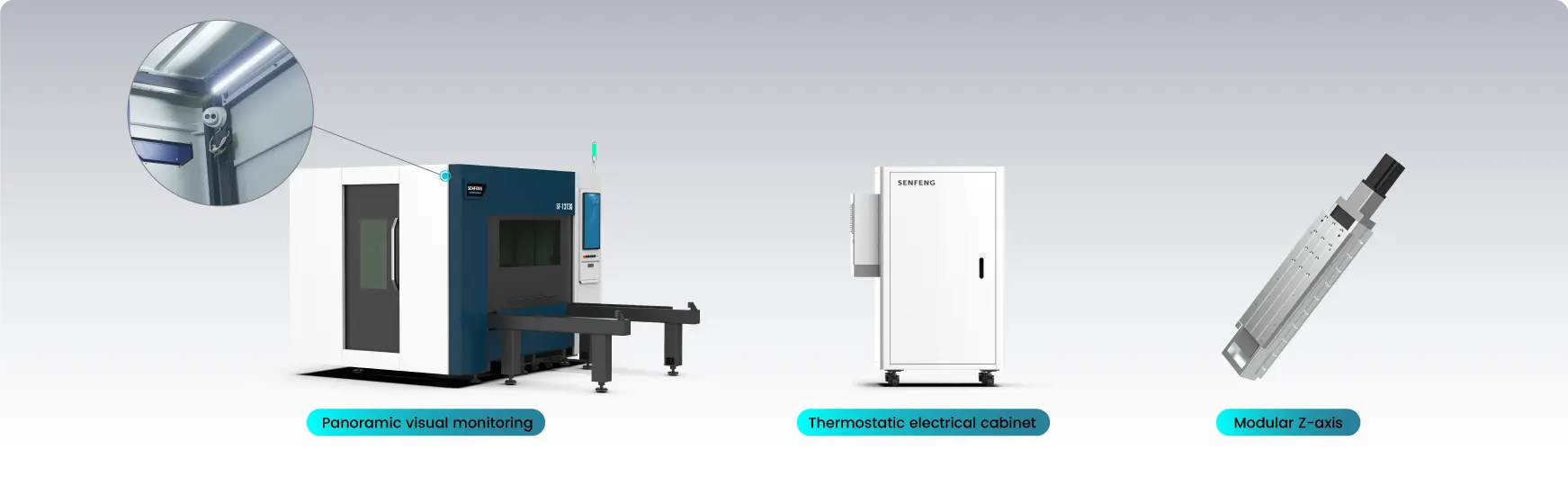

3. Lower Learning Curve by User-friendly Design
Panoramic visual monitoring, thermostatic electrical cabinet, modular Z-axis, and assist gas automatic distribution system enhance operational safety while meeting users’ demands for cutting speed, precision and cost control.

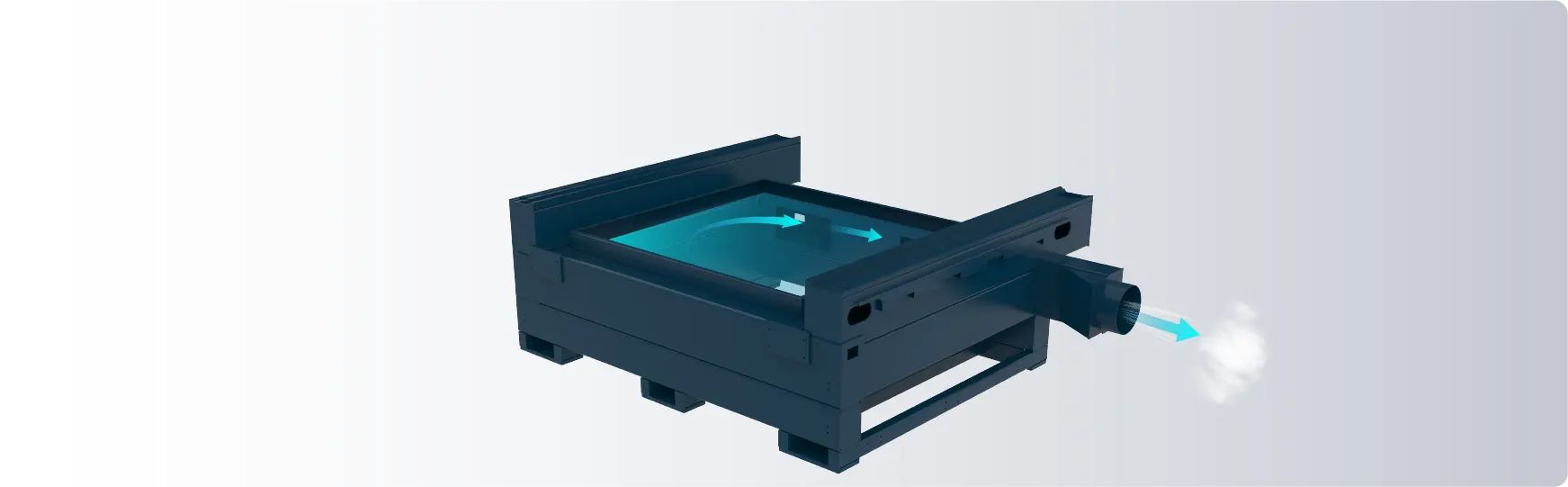

4. Intelligent Smoke-Free Dust Extraction System
It automatically activates exhaust zones based on the cutting position, enabling zoned and segmented airflow control.
Dual-channel extraction with a sealed base ensures efficient fume capture and truly smoke-free laser cutting.

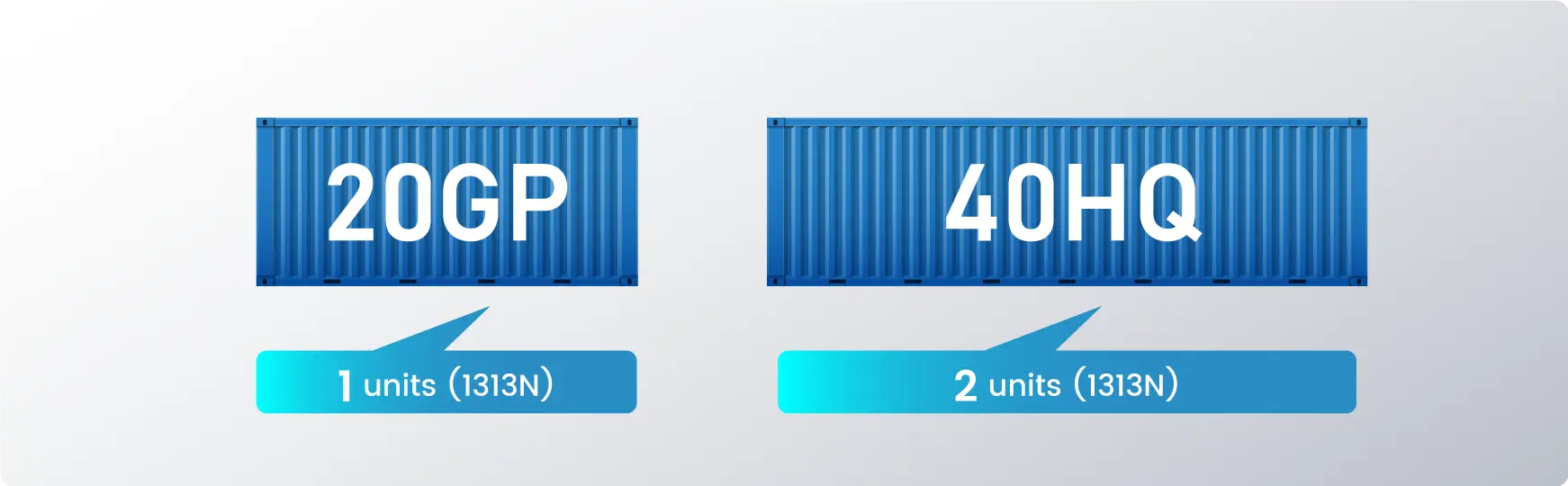

5. Relatively Economical for Oversea Shipment
Only one 20GP or 40HQ container is needed. Additionally, multiple units can be shipped together in the same container, reducing per-unit freight costs.
Technical Parameters
| Model | SF1313N |
| Laser Power | 1.5 kW – 6 kW |
| Working Area (L*W) | 4′ * 4′ |
| X/Y-axis Positioning Accuracy | 0.00196″ (±0.05mm) |
| X/Y-axis Repositioning Accuracy | 0.00078″ (±0.02mm) |
| Max. No-load Speed | 328’/min |
| Max. Acceleration | 1G |
| Max. Load of Platform | 661.3 lb (300kg) |
| Overall Dimensions (L*W*H) | 112.5″ * 146.4″ * 77.2″ |
| Power Supply | 380V, 3-phase, 50Hz/60Hz. (Standard configuration) Available in 208V/240V/480V/600V, 3-phase, 60Hz. |

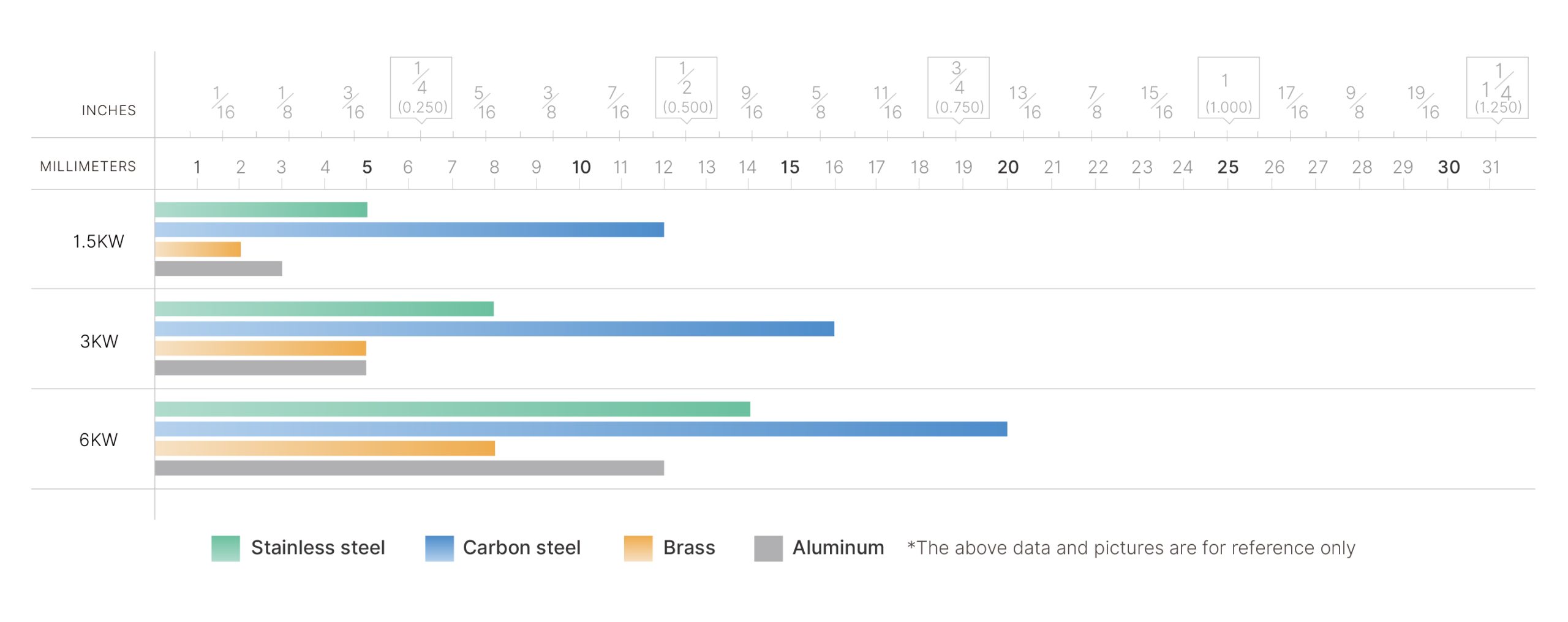

Cutting Capacity
